Hi-Capacity

This high efficiency boiler pump offers unsurpassed performance and is ideal for commercial boiler applications.

Max. flow

550L/h


Max. rec. head

5m (flow rate 10L/h)

Hi-Capacity, FP3356

Hi-Capacity, FP3356

Hi-Capacity dimensions

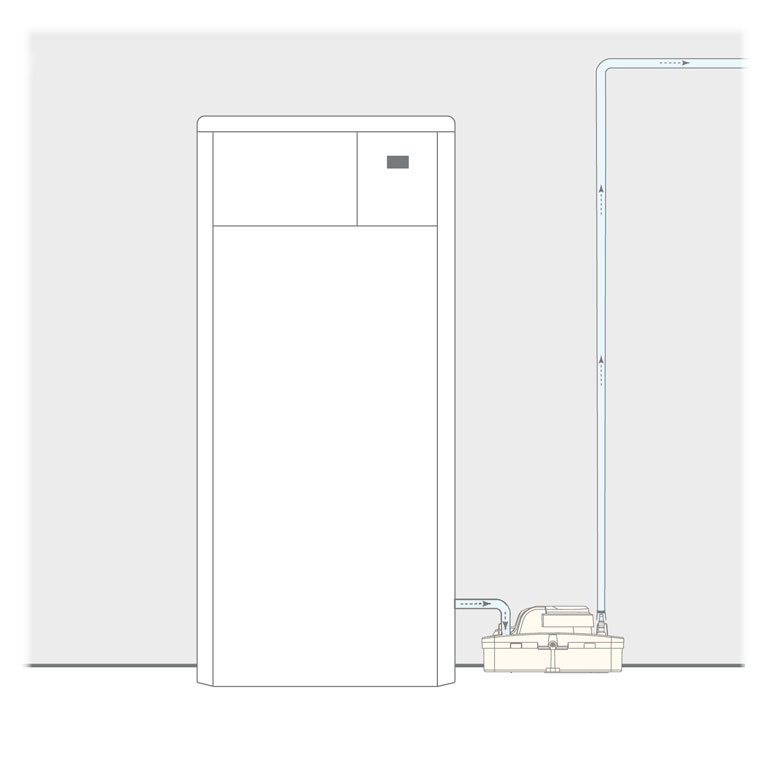

Hi-Capacity install

Hi-Capacity, FP3356

Hi-Capacity, FP3356

Hi-Capacity dimensions

Hi-Capacity install

    Part number Description
    FP3357 Hi-Capacity
    • Easy access tank
    • Twist & click non return outlet barb
    • Built-in spirit level
    • Plug & play
    • Up to 200kW / 682,000Btu/h with condensate PH value >2.2
    • Perfect for... Larger domestic commercial gas & oil fired condensing boilers
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    550L/h
    Max. rec. head
    5m
    Tank Capacity
    1.7L
    dB(A)
    44
    Power supply
    230 VAC, 0.8A, 50Hz
    Rated
    Non continuous
    Class
    I appliance
    Max. unit output
    200kW / 682,000Btu/h
    Max. water temp
    60°C / 140°F
    Inlets
    x4 21-27mm
    Outlets
    6-10mm
    IP Protection
    IP24
    Safety switch
    3.0A Normally closed
    Thermal protection
    1
    Fully potted
    0
    Self priming
    0
    • Hi-Capacity boiler pump
    • 2m Plug & play power cable
    • 6m discharge tube (10mm ID)
    • Pipe adaptor
    • Fixing kit
    • x4 feet
    • Install manual
