Maxi Orange

Need more performance? Designed for larger units, the Maxi Orange pump gives you the extra power when you need it.

Max. flow

35L/h


Max. rec. head

15m (flow rate 10L/h)


Sound level

35dB(A) @ 1m

Maxi Orange, FP2210

Maxi Orange, FP2210

Maxi Orange install

Maxi Orange, FP2210

Maxi Orange, FP2210

Maxi Orange install

    Part number Description
    FP2210 Maxi Orange
    • High power motor
    • Superior performance
    • Submersible secondary reservoir included
    • Up to 46kW / 157,000Btu/h
    • High wall split systems; Ducted units; Floor standing & Chassis units
    • Perfect for... Large commercial units
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    35L/h
    Max. rec. head
    15m
    Max. suction lift
    2m
    dB(A)
    35
    Power supply
    230 VAC, 0.11A, 16W, 50/60Hz
    Rated
    Non continuous
    Class
    II appliance
    Max. unit output
    46kW / 157,000Btu/h
    Max. water temp
    40°C / 104°F
    Discharge tube
    6mm ID
    IP Protection
    IP21
    Safety switch
    3.0A Normally closed
    Thermal protection
    1
    Fully potted
    1
    Self priming
    1

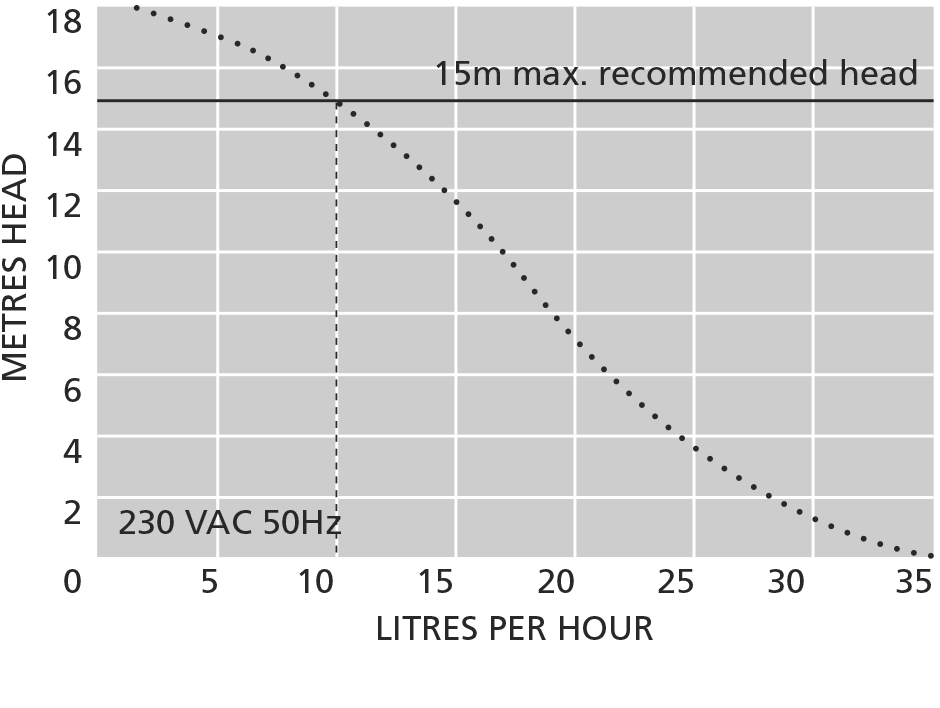

    Flow Chart
    • Maxi Orange pump
    • 1.5m Plug & play power cable
    • Reservoir
    • Reservoir lid with 1.5m sensor cable
    • Submersible reservoir
    • Anti siphon device
    • Float & filter
    • 1.5m Suction tube 6mm ID
    • 220mm Orange inlet hose 14mm ID
    • 150mm Vinyl breather tube 6mm ID
    • Drain connector kit
    • Fixing kit
    • Install manual
    Pump selector

    Need help finding the right pump for your unit?

    The Aspen Pumps pump selector is a guide to help match your unit to the right pump.

    Where to buy

    Our products are sold nationwide by all major suppliers

    Find a stockist
