Mechanical

Bringing mini pump and peristaltic pump technology together. Simply position the remote reservoir (float switch) in the condensate tray or fix to the drain-pipe connection (depending on chosen reservoir). Alarm option available.

Max. flow

6.5L/h


Max. rec. head

12m (flow rate 6.5L/h)

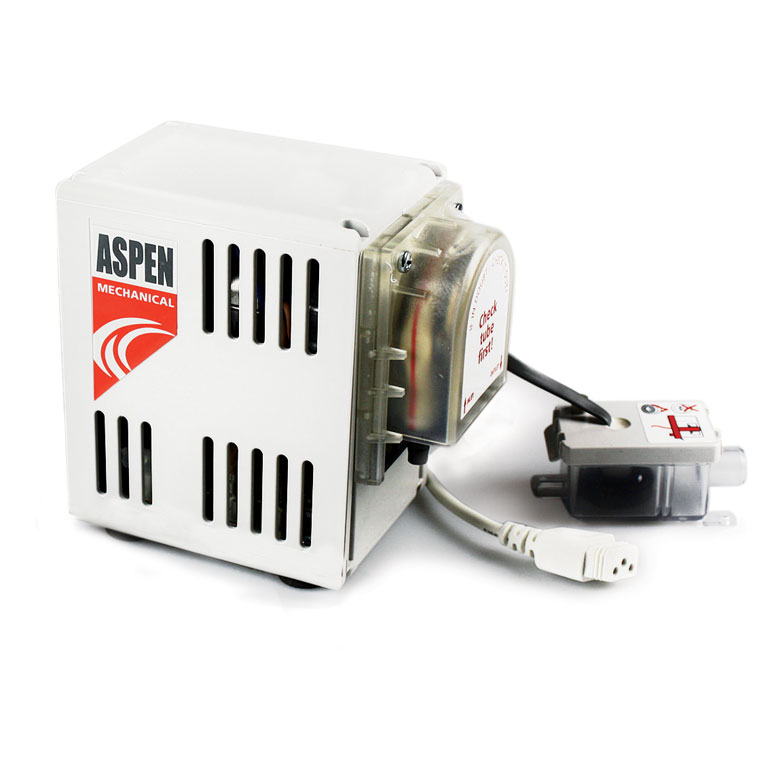

Mechanical, FP2078

Mechanical, FP2078

Mechanical – in the box

In the box

Mechanical dimensions

Mechanical, FP2078

Mechanical, FP2078

Mechanical – in the box

In the box

Mechanical dimensions

    Part number Description
    FP2078 Mechanical
    • Float switch operated
    • Remote install possible
    • Submersible secondary reservoir included
    • Up to 8.5kW / 29,000Btu/h
    • High wall split systems; Ducted units; Floor standing & Chassis units
    • Perfect for... Remote reservoir float switch operation
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    6.5L/h
    Max. rec. head
    12m
    Max. suction lift
    3m
    dB(A)
    47
    Power supply
    230 VAC, 0.2A, 50/60Hz
    Rated
    Continuously
    Class
    I appliance
    Max. unit output
    8.5kW / 29,000Btu/h
    Max. water temp
    40°C / 104°F
    Discharge tube
    6mm ID
    IP Protection
    IP21
    Safety switch
    n/a
    Thermal protection
    1
    Fully potted
    0
    Self priming
    1
    Flow Chart
    • Mechanical pump
    • 2m Plug & play power cable
    • Reservoir
    • Reservoir lid with 3m Float switch cable
    • Submersible reservoir
    • Wall mounted bracket
    • Fixing kit
    • Install manual
