Mini Split Stand Range
The Mini Split Stand Range is available in a variety of frame sizes to suit a single unit or, with the addition of extender kits, you can support multiple mini splits.

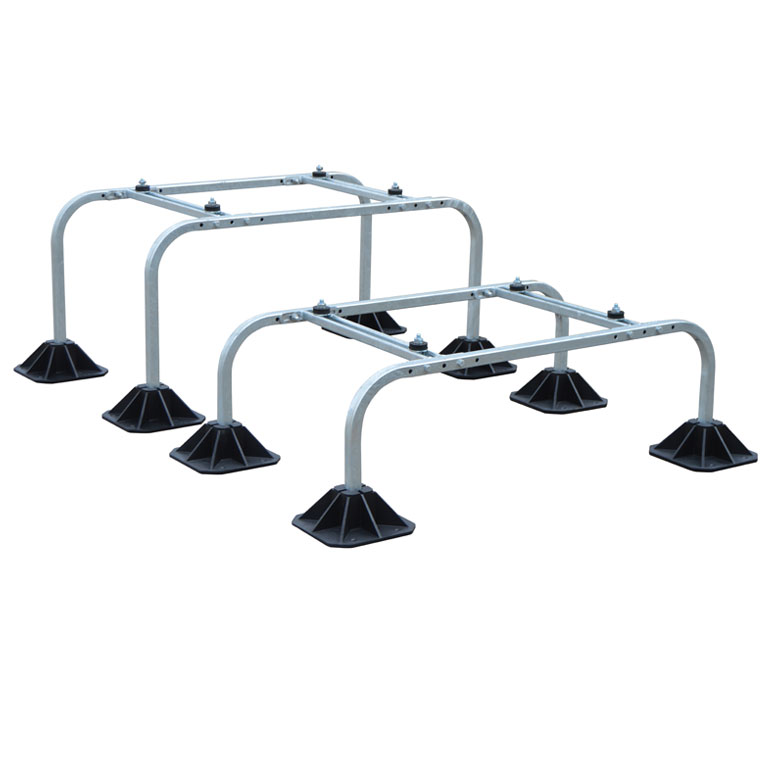

B5550, B5551

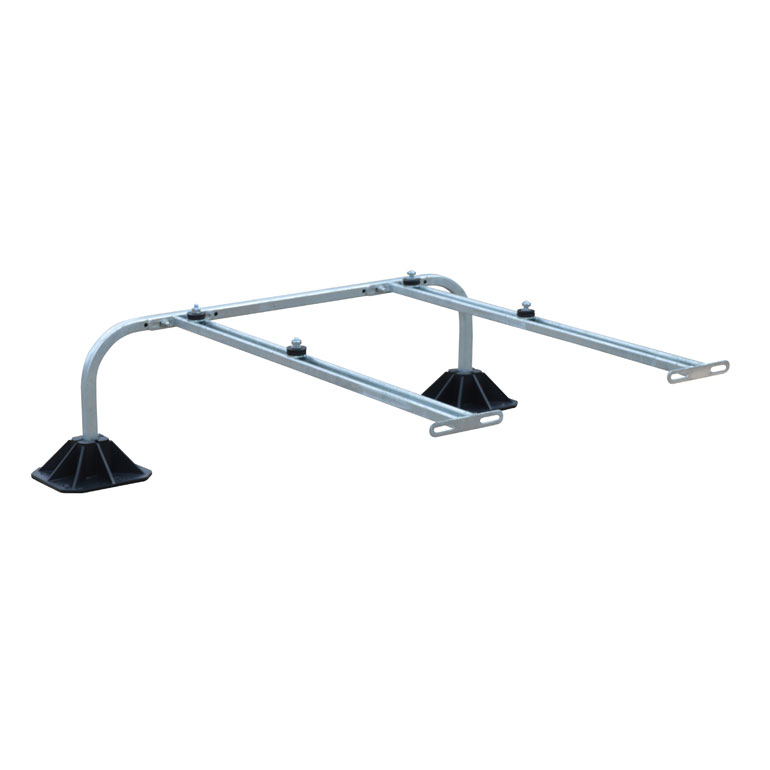

B5553
B5552
B5550, B5551
B5553
B5552
| Part number | Description | Height (mm) | Length (mm) | Max load (kg) | Weight (kg) | Width (mm) |
|---|---|---|---|---|---|---|
| B5550 | Mini Split Stand Range Low | 305 | 475 | 175 | 20 | 419 - 619 |
| B5551 | Mini Split Stand Range High | 450 | 475 | 175 | 22 | 419 - 619 |
| B5552 | Mini Split Stand Range Tower | 305 & 1000 | 475 | 300 | 35 | 419 - 619 |
| B5553 | Mini Split Stand Range Low Extender | 305 | 950 | 175 | 18 | 419 - 619 |
| B5554 | Mini Split Stand Range High Extender | 450 | 950 | 175 | 19 | 419 - 619 |
| B5555 | Mini Split Stand Range Riser (4 Pack) | 152 | 1.5 | |||
| B5562 | Mini Split Stand Range Riser (2 Pack) | 152 | 0.75 |
- 200mm Feet
- 3 heights available
- Optional Extender Kits and Risers
- Support individual or multiple mini split units
- Adjustable slotted channel cross bar, to suit industry standard fixings
- Anti-vibration mounts
- Quick to assemble
- FRAME:
- 200mm Foot & insert x 4
- End bar x 2
- Cross bar x 2
- Fixing kit x 4
- EXTENDER:
- 200mm Foot & insert x 2
- End bar x 1
- Cross bar x 2
- Fixing kit x 4
- TOWER:
- 200mm Foot & insert x 4
- End bar x 2
- Cross bar x 4
- Fixing kit x 8
