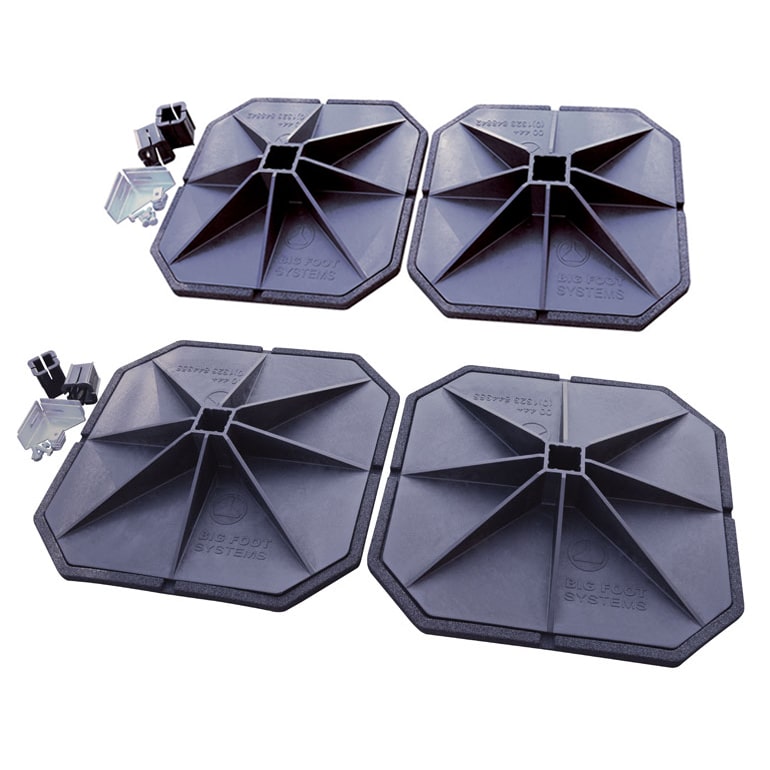

H Frame Set 450mm & 600mm
Where a greater load distribution is required for applications such as large ductwork, 450mm or 600mm H Frame Sets are also available.
Boxed for convenience
Boxed for convenience
| Part number | Description | Foot size (mm) | Max load (kg) | Weight (kg) |
|---|---|---|---|---|
| B6089 | H Frame Set 450mm | 450 | 500 | 14 |
| B9222 | H Frame Set 600mm | 600 | 500 | 25 |
- 450mm or 600mm feet
- Suits 41 x 41mm strut (strut not included)
- Excellent load distribution
- Versatile application
- Rubber mats provide additional roof protection
- Boxed for convenience
- Foot x 2
- Rubber mat x 2
- Strut Insert x 2
- Bracket & fixings x 2
- Assembly instructions x 1
