Heat Pump Drip Tray Kit

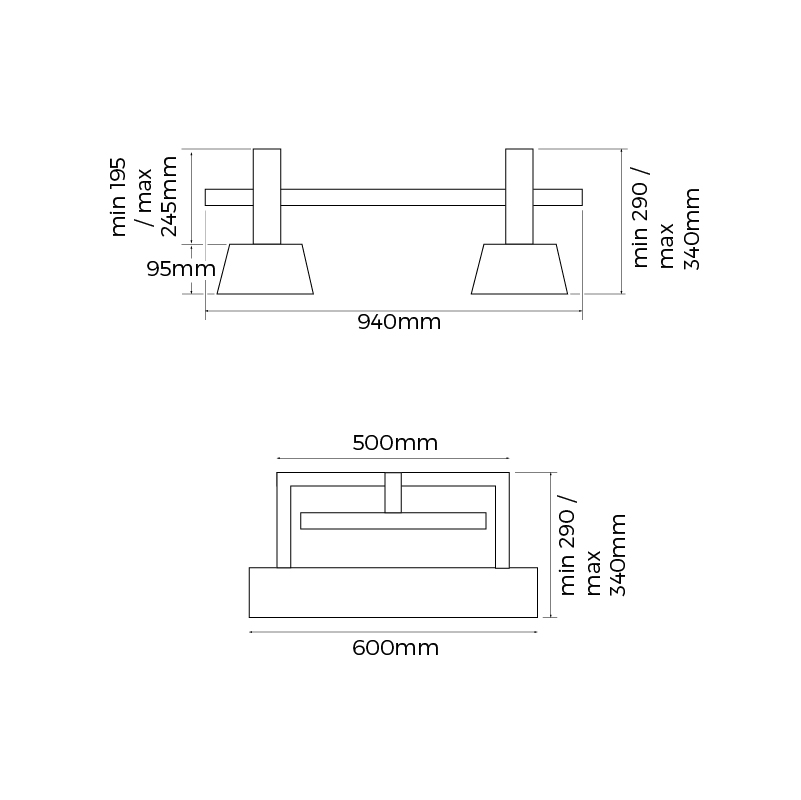

Heat Pump Drip Tray Kit Technical
Heat Pump Drip Tray Kit
Heat Pump Drip Tray Kit Technical
| Part number | Height (mm) | Max load (kg) | Width (mm) |
|---|---|---|---|
| B2075 | min 290/max 340mm | 300 | 940 |
- Drip Tray, Feet and bracket pack all in one box kit
- Anti vibration Big Foot Fix-It feet 600 included
- min 290 / max 340mm Ground clearance for better airflow around heat pump
- Hi Bloc feet available as optional accessories to increase ground clearance
- Metal work in RAL9002 colour
- Made from 20/10 Galvanised Steel
- Polyester powder coated finish (approx 100μm thickness)
- M8 8.8 zinc passivated carbon steel high strength fixings included
