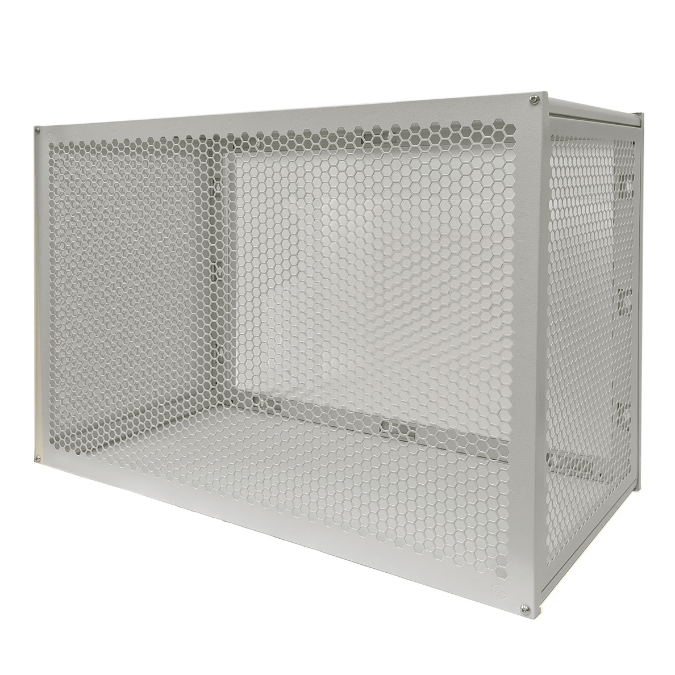

Condensing Unit Guard
Easy to install durable powder coated aluminium framework and steel panels.
Condensing Unit Guard
Condensing Unit Guard
| Part no | Description | Ideal Use | Size |
|---|---|---|---|
| B6192 | Small | Weight 19kg | Internal: 600 h x 900 w x 350 d mm |
| B6191 | Medium | Weight 28.5kg | Internal: 1000 h x 1000 w x 500 d mm |
| B6190 | Large | Weight 34kg | Internal: 1300 h x 1000 w x 500 d mm |
- A range of 3 sizes

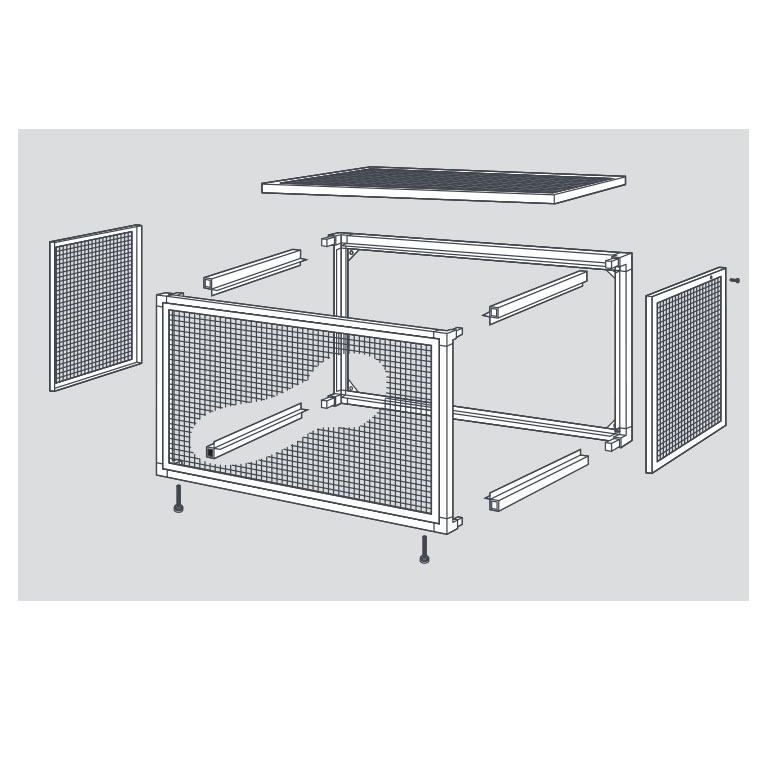

- Panels are removable to allow maintenance of the unit
- Adjustable feet to allow services at ground level
- Bottom panels and drip tray available for guard fixed at high level on wall
- Back panel available for free standing units
- Screws included
- Individual panel parts available – see technical sheet
Materials of construction
Zinc passivated steel with powder coating (ivory)
