Insulclamp

Channel clip ideal for bigger commercial air conditioning and refrigeration installations.

Channel

Rod

Surface

Insulclamp

Insulclamp

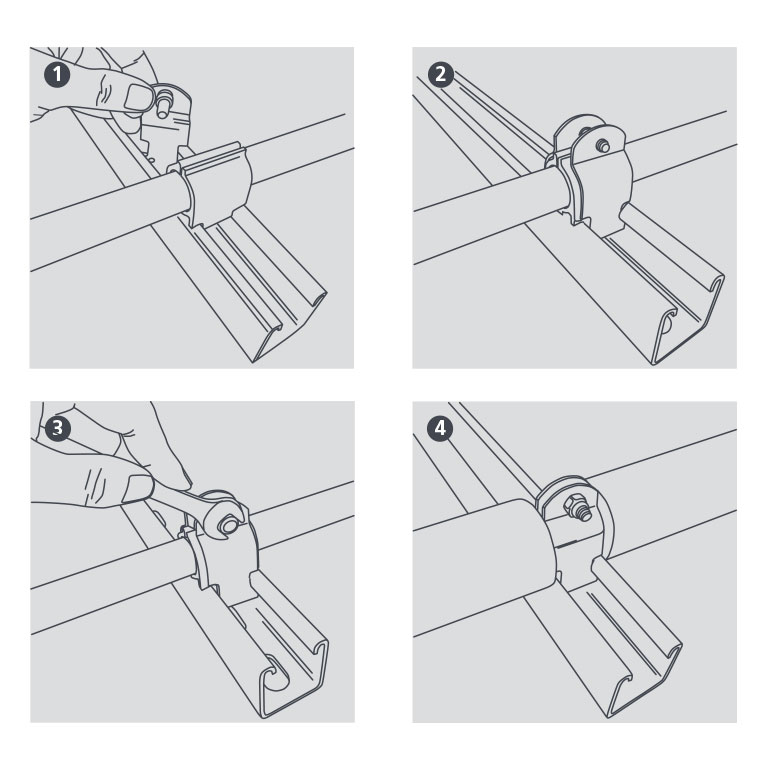

Insulclamp install

Insulclamp

Insulclamp

Insulclamp install

    Part no Qty Size
    B6268 10 1/4”
    B6274 10 3/8”
    B6267 10 1/2”
    B6276 10 5/8”
    B6273 10 3/4”
    B6277 10 7/8”
    B6264 10 1 1/8”
    B6265 10 1 3/8”
    B6266 10 1 5/8”
    B6269 5 2 1/8”
    B6270 5 2 5/8”
    B6271 5 3 1/8”
    B6272 5 3 5/8”
    B6275 5 4 1/8”
    • Easy installation into 40mm x 40mm and 40mm x 20mm channel
    • Insulates against heat loss and reduces vibration
    • Quick to install with lock nuts
    • Fits into shallow void
    • Supports individual pipes into a thermo-rubber cushion between two metal plates
    • Thermo-rubber cushion insert withstands maximum temperature of 130ºC (zinc bracket 1000ºC)
    • For further technical information consult the attached tech sheet.
    Materials of construction
    Zinc passivated steel with rubber cushion
    Max Temp
    130°C
    Max rec distance per clip
    1.2m
