Maxi Orange
Need more performance? Designed for larger units, the Maxi Orange pump gives you the extra power when you need it.

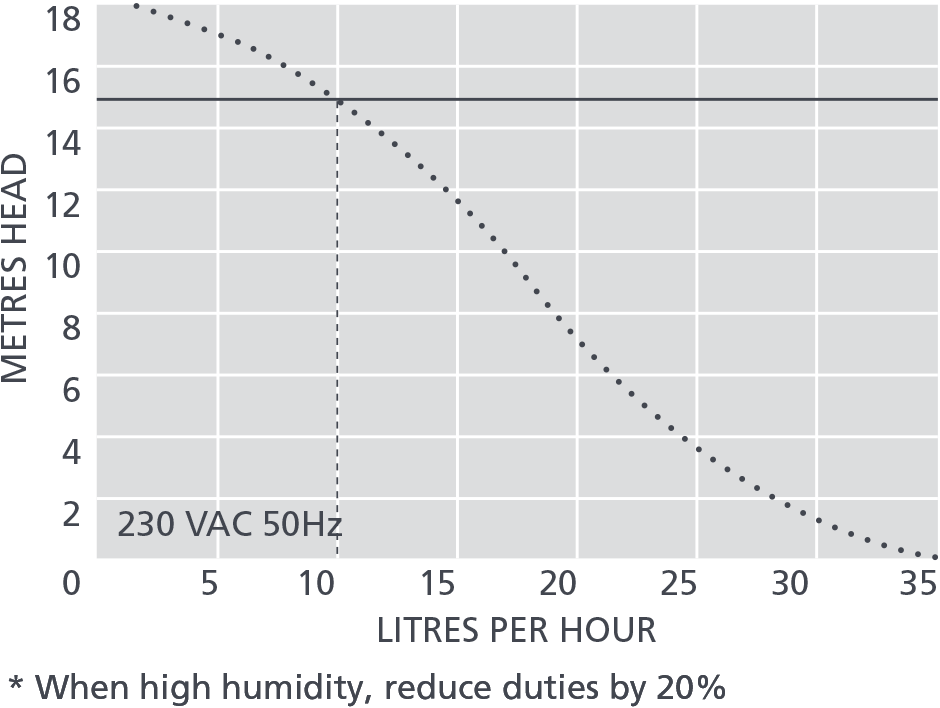

Max. flow
35L/h
Max. rec. head
15m (flow rate 10L/h)
Sound level
35dB(A) @ 1m
Maxi Orange, FP2210/FIL
Maxi Orange, FP2210/FIL
| Part number | Description |
|---|---|
| FP2210/FIL | Maxi Orange |
- High power motor
- Superior performance
- Submersible secondary reservoir included
- Up to 46kW / 157,000Btu/h
- High wall split systems; Ducted units; Floor standing & Chassis units
- Perfect for... Large commercial units
Data Based
@ 230 VAC 50Hz
Max. flow
35L/h
Max. rec. head
15m
Max. suction lift
2m
dB (a)
35
Power supply
230 VAC, 0.11A, 16W, 50/60Hz
Rated
Non continuous
Class
II appliance
Max. unit output
46kW / 157,000Btu/h
Max. water temp
40°C / 104°F
Discharge tube
6mm ID
IP Protection
IP21
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✓
Self priming
✓
- Maxi Orange pump
- 1.5m Plug & play power cable
- Reservoir
- 16mm Inline Filter
- Reservoir lid with 1.5m sensor cable
- Submersible reservoir
- Anti siphon device
- Float & filter
- 1.5m Suction tube 6mm ID
- 220mm Orange inlet hose 14mm ID
- 150mm Vinyl breather tube 6mm ID
- Drain connector kit
- Fixing kit
- Install manual
