Silent+ Mini Aqua
Combining Silent+ technology and the slimmest mini pump on the market, the Silent+ Mini Aqua leads the way in innovation.
Max. flow
12L/h

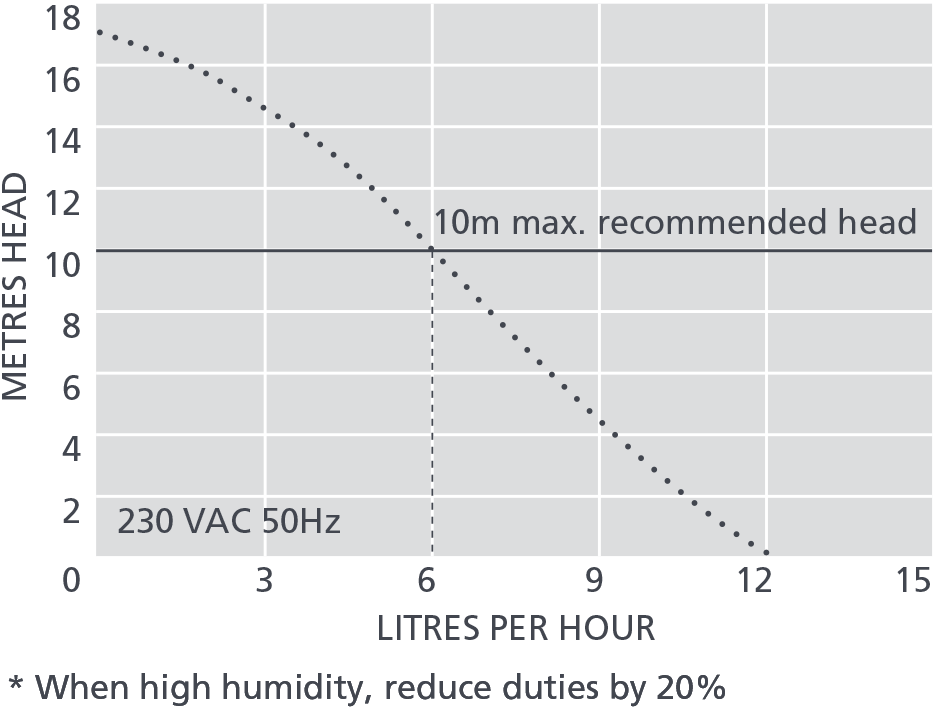

Max. rec. head
10m (flow rate 6L/h)
Sound level
19dB(A) @ 1m
Silent+ Mini Aqua®, FP3326/FIL
In the box
The ultra slim Mini Aqua is designed to fit where other’s can’t.
Silent+ Mini Aqua®, FP3326/FIL
In the box
The ultra slim Mini Aqua is designed to fit where other’s can’t.
| Part number | Description |
|---|---|
| FP3326/FIL | Silent+ Mini Aqua |
- Quietest in its class
- Acoustic damper
- Plug & play
- Anti siphon device
- Up to 16kW / 54,000Btu/h
- Ducted units; Floor standing & Chassis units; High wall mini split systems
- Perfect for... Small & quiet – you’ll never know it’s there!
Data Based
@ 230 VAC 50Hz
Max. flow
12L/h
Max. rec. head
10m
Max. suction lift
2m
dB (a)
19
Power supply
230 VAC, 0.1A, 16W, 50/60Hz
Rated
Non continuous
Class
II appliance
Max. unit output
16kW / 54,000Btu/h
Max. water temp
40°C / 104°F
Discharge tube
6mm ID
IP Protection
IP24
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✓
Self priming
✓
- Silent+ Mini Aqua pump
- 1.5m Plug & play power cable
- 16mm Inline Filter
- Acoustic damper and 1m aqua discharge tube with connector
- Anti vibration bracket
- 150mm Vinyl breather tube 6mm ID
- Anti siphon device
- 1.5m Suction tube 6mm ID
- 220mm Blue inlet hose 14mm ID
- Drain connector kit
- Fixing kit
- Install manual
