VRV/VRF Stand Range
The Stand Range is a versatile ground mount frame system, and with the optional Extender Kits, it is compatible with all leading VRF/VRV units.

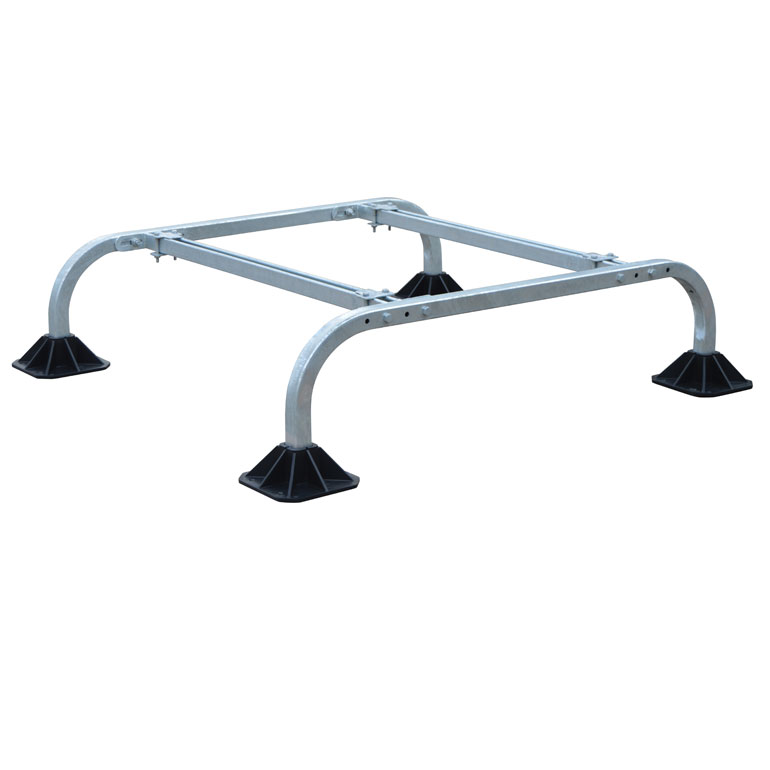

B5556

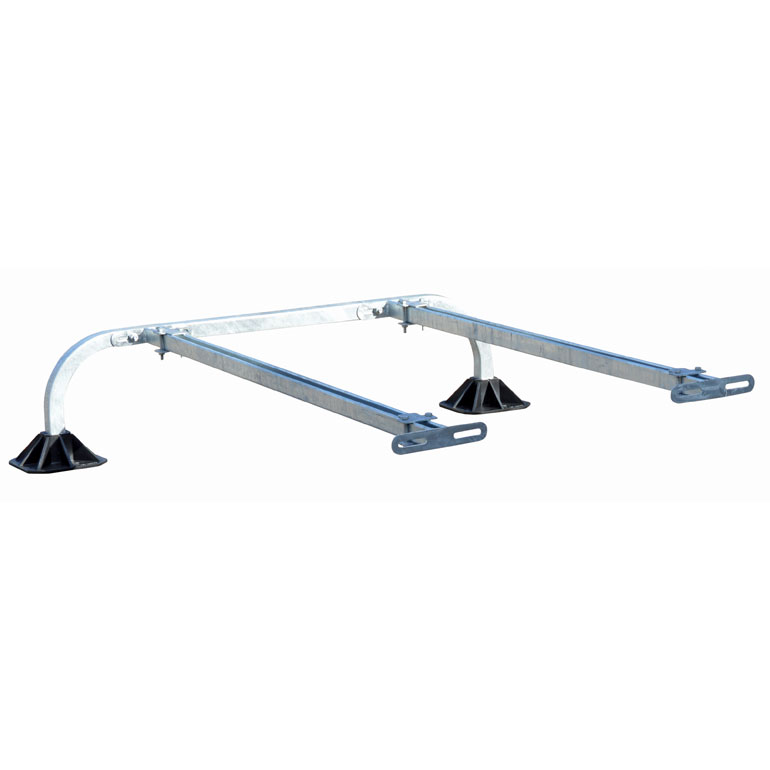

B5561

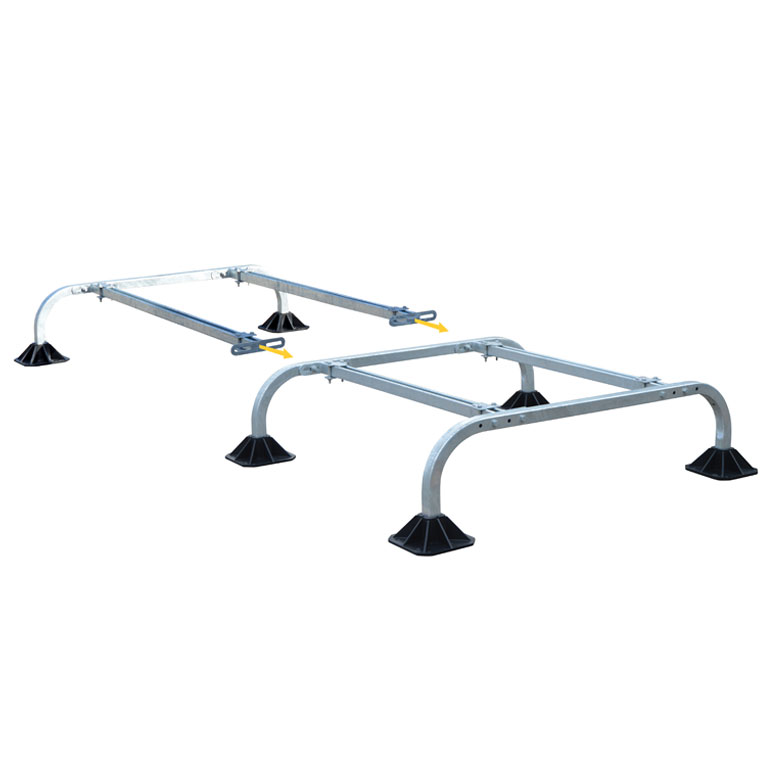

B5556 & B5559
B5556
B5561
B5556 & B5559
| Part number | Description | Height (mm) | Length (mm) | Max load (kg) | Weight (kg) | Width (mm) |
|---|---|---|---|---|---|---|
| B5556 | VRV/VRF Stand Range 990 Frame | 305 | 990 | 600 | 35 | 620 - 780 |
| B5557 | VRV/VRF Stand Range 1290 Frame | 305 | 1290 | 500 | 38 | 620 - 780 |
| B5558 | VRV/VRF Stand Range 1450 Frame | 305 | 1450 | 400 | 41 | 620 - 780 |
| B5559 | VRV/VRF Stand Range 990 Extender | 305 | 990 | 600 | 25 | 620 - 780 |
| B5560 | VRV/VRF Stand Range 1290 Extender | 305 | 1290 | 500 | 28 | 620 - 780 |
| B5561 | VRV/VRF Stand Range 1450 Extender | 305 | 1450 | 400 | 31 | 620 - 780 |
- 200mm Feet
- 3 heights available
- Optional Extender Kits
- Support individual or VRF/VRV units
- Adjustable slotted channel cross bar, to suit industry standard fixings
- Clamp kits
- Quick to assemble
- FRAME:
- 200mm Foot & insert x 4
- End bar x 2
- Cross bar x 2
- Fixing kit x 4
- EXTENDER:
- 200mm Foot & insert x 2
- End bar x 1
- Cross bar x 2
- Fixing kit x 4
