Mini Aqua
The world’s slimmest condensate removal pump is designed to fit where other’s can’t!
Max. flow
3.2 US Gal/h / 12L/h max. flow

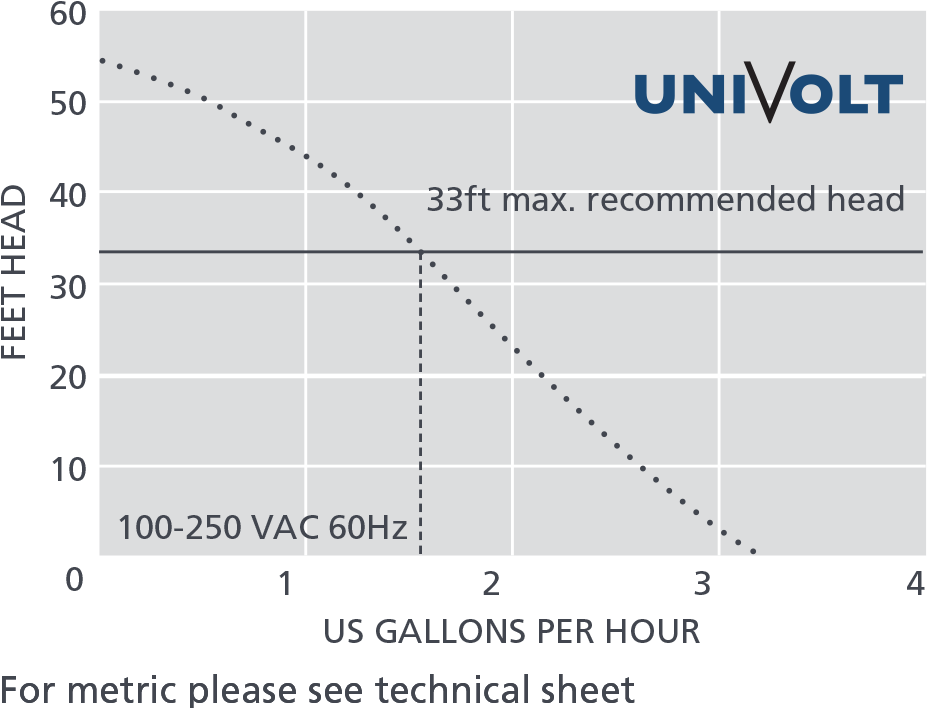

Max. rec. head
33ft / 10m max. rec. head(flow rate 1.6 US Gal/h / 6L/h)
Sound level
25dB(A)
Mini Aqua®, FP1035/RS
In the box
The ultra slim Mini Aqua is designed to fit where other’s can’t.
Mini Aqua®, FP1035/RS
In the box
The ultra slim Mini Aqua is designed to fit where other’s can’t.
| Part number | Description |
|---|---|
| FP1035/RS | Mini Aqua Univolt |
- Univolt
- Ultra slim
- High performance
- Plug & play
- Anti siphon device
- Up to 4.5ton / 54,000Btu/h
- Ductless mini split systems; Ducted units; Floor standing & Chassis units
- Perfect for... installing directly inside the unit
Data Based
@ 230 VAC 50Hz
Max. flow
3.2 US Gal/h / 12L/h
Max. rec. head
33ft / 10m
Max. suction lift
6.5ft / 2m
dB(A)
21
Power supply
230 VAC, 0.1A, 16W, 50/60Hz
Rated
Non continuous
Class
II appliance
Max. unit output
4.5ton / 49,500Btu/h
Max. water temp
40°C / 104°F
Discharge tube
1/4" / 6mm ID
IP Protection
IP24
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✓
Self priming
✓
- Mini Aqua Univolt pump
- 5ft / 1.5m Plug & play power cable
- Reservoir (inc. filter, float, lid)
- 6” / 150mm Vinyl breather tube 1/4” / 6mm ID
- Anti siphon device
- 5ft / 1.5m Suction tube 1/4” / 6mm ID
- 8 1/2” / 220mm Blue inlet hose 9/16” / 14mm ID
- Drain connector kit
- Inline Fuse
- Fixing kit
- Install manual
