Multi Frame & Multi Frame XL
Multi Frame and Multi Frame XL can be extended in any direction using the Extension kits, providing the flexibility to mix and match Multi Frame and Multi Frame XL to create the frame size and shape configuration to suit the install.

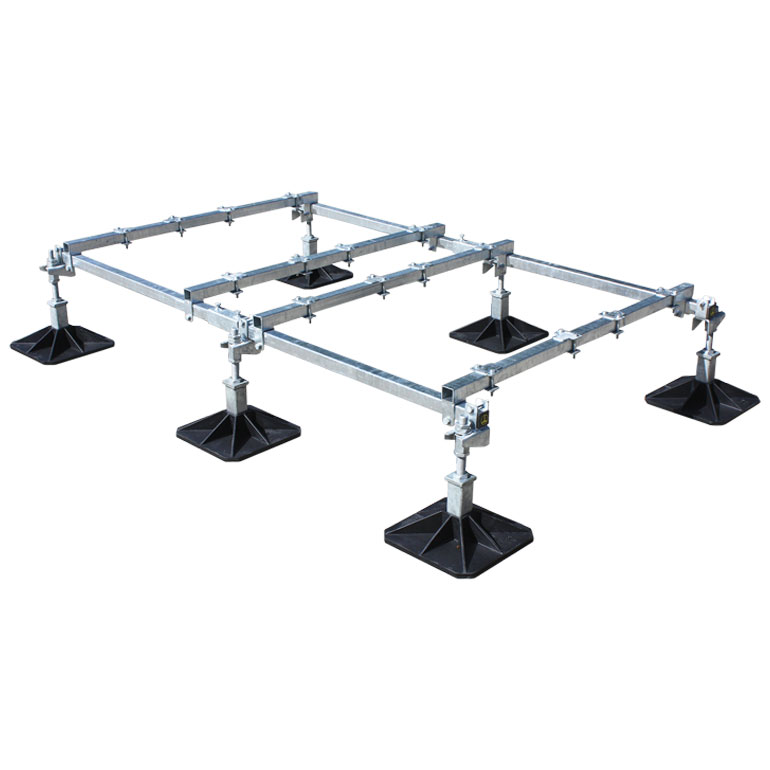

B9720
B9720
| Part number | Description | Height (in) | Height (mm) | Length (in) | Length (mm) | Max load (kg) | Max load (lbs) | Weight (kg) | Weight (lbs) | Width (in) | Width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B9720 | Multi Frame | 13-18 | 335-440 | 39 | 1000 | 500 | 1102 | 36 | 79 | 47 | 1200 |
| B9721 | Extension Kit | 13-18 | 335-440 | 39 | 1000 | 500 | 1102 | 26 | 57 | 47 | 1200 |
| B9720/1 | Multi Frame Long Stud | 13-26 | 335-660 | 39 | 1000 | 500 | 1102 | 40 | 88 | 47 | 1200 |
| B9721/1 | Extension Kit Long Stud | 13-26 | 335-660 | 39 | 1000 | 500 | 1102 | 28 | 62 | 47 | 1200 |
| B9731 | Multi Frame XL | 13-18 | 335-440 | 59 | 1500 | 500 | 1102 | 43 | 95 | 47 | 1200 |
| B9732 | Extension XL Kit | 13-18 | 335-440 | 59 | 1500 | 500 | 1102 | 33 | 73 | 47 | 1200 |
| B9731/1 | Multi Frame XL Long Stud | 13-26 | 335-660 | 59 | 1500 | 500 | 1102 | 45 | 99 | 47 | 1200 |
| B9732/1 | Extension XL Kit Long Stud | 13-26 | 335-660 | 59 | 1500 | 500 | 1102 | 35 | 77 | 47 | 1200 |
- 12" Feet.
- 39" x 47", 59" x 47" multiples.
- Mix and match any Multi Frame and Multi Frame XL of the same height.
- Extend from any side.
- Suits a wide variety of units.
- Adjustable leg assemblies.
- Easy to assemble - cross bars simply position onto the end bars.
- Supplied boxed with clamp kits.
- FRAME: 305mm Foot & insert x 4, 1m End bar x 2, 1.2m Cross bar x 2, Unit clamp kit x 8
- EXTENDER: 305mm Foot & insert x 2, 1m End bar x 2, 1.2m Cross bar x 2, Unit clamp kit x 8, Connector x 2
