Heavy Duty 6 & 10
With an impressive flow rate, these robust and reliable Heavy Duty pumps are perfect for the rapid removal of large quantities of condensate water.

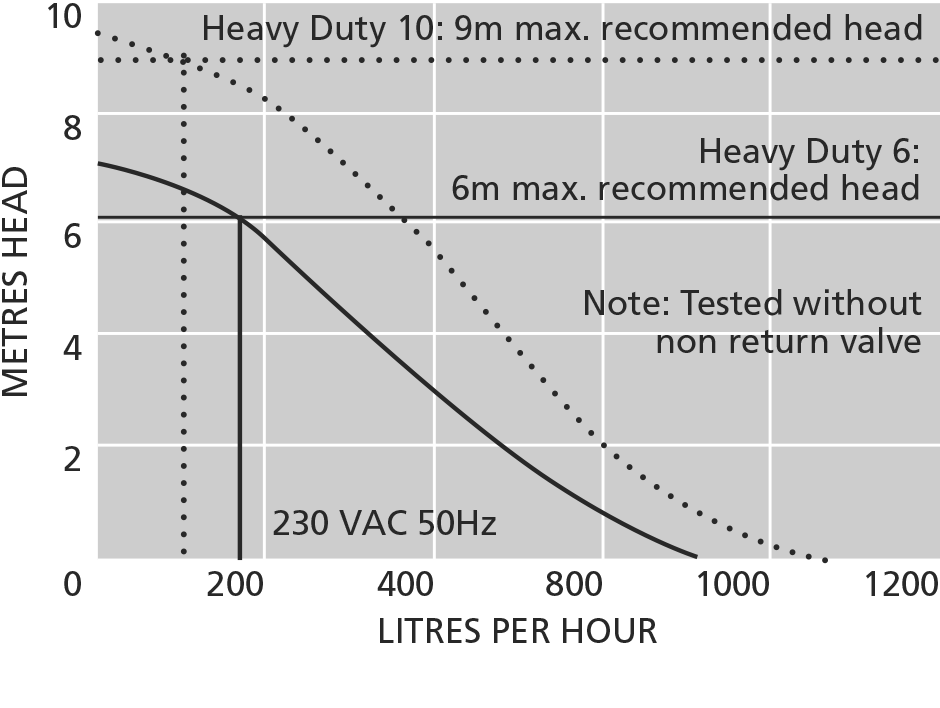

Max. flow
HD6: 900L/h max. flow
HD10: 1070L/h max. flow
Max. rec. head
HD6: 6m max. rec. head
(flow rate 180L/h
HD10: 9m max. rec. head
(flow rate 100L/h)
Heavy Duty 10L, FP2066/2

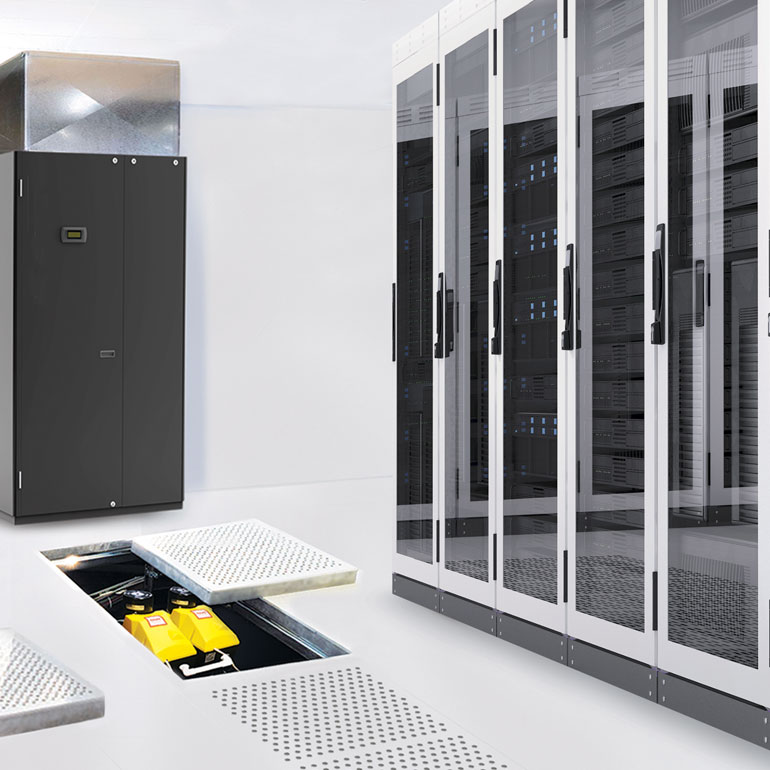

Heavy Duty tank pumps are ideal for temperature critical environments. Keeping equipment & data safe.
Heavy Duty 10L, FP2066/2
Heavy Duty tank pumps are ideal for temperature critical environments. Keeping equipment & data safe.
| Part number | Description |
|---|---|
| FP2074/2 | Heavy Duty 6 |
| FP2066/2 | Heavy Duty 10 |
- High flow rate
- Non return valve
- Easy installation
- 4 litre tank capacity
- HD6: Up to 1200kW / 4m Btu/h
- HD10: Up to 1460kW / 4.9m Btu/h
- Dehumidifiers; Air handling units (AHUs)
- Perfect for... Large volumes of water
Data Based
@ 230 VAC 50Hz
Max. flow
HD6: 900L/h, HD10: 1070L/h
Max. rec. head
HD6: 6m, HD10: 9m
Tank Capacity
4L
dB(A)
HD6: 60, HD10: 64
Power supply
HD6: 230 VAC, 1.5A, 50Hz, HD10: 230 VAC, 0.38A, 50Hz
Rated
HD6: Non continuous, HD10: Continuous
Class
I appliance
Max. unit output
HD6: 1200kW / 4m Btu/h, HD10: 1460kW / 4.9m Btu/h
Max. water temp
40°C / 104°F
Inlets
x2 40mm
Outlets
10mm
IP Protection
IP20
Safety switch
3.0A Normally closed
Thermal protection
✕
Fully potted
✕
Self priming
✕
- Heavy Duty 6 or 10 pump
- 2m power cable
- Install manual
