Fix-it Foot & High Bloc
The neat and tidy rubber Fix-it Foot is simple, durable and comes in a variety of sizes. Extra clearance can be created using a High Bloc which fits underneath.
B6737
B9043, B9045
B6737, B6974
B6737
B9043, B9045
B6737, B6974
| Part number | Description | Height (mm) | Length (mm) | Max load (kg) | Weight (kg) | Width (mm) |
|---|---|---|---|---|---|---|
| B6735 | Fix-it Foot 250 | 95 | 250 | 82 | 2.4 | 180 |
| B6736 | Fix-it Foot 400 | 95 | 400 | 128 | 3.5 | 180 |
| B6737 | Fix-it Foot 600 | 95 | 600 | 224 | 5.8 | 180 |
| B9096 | Fix-it Foot 1000 | 95 | 1000 | 295 | 9.9 | 180 |

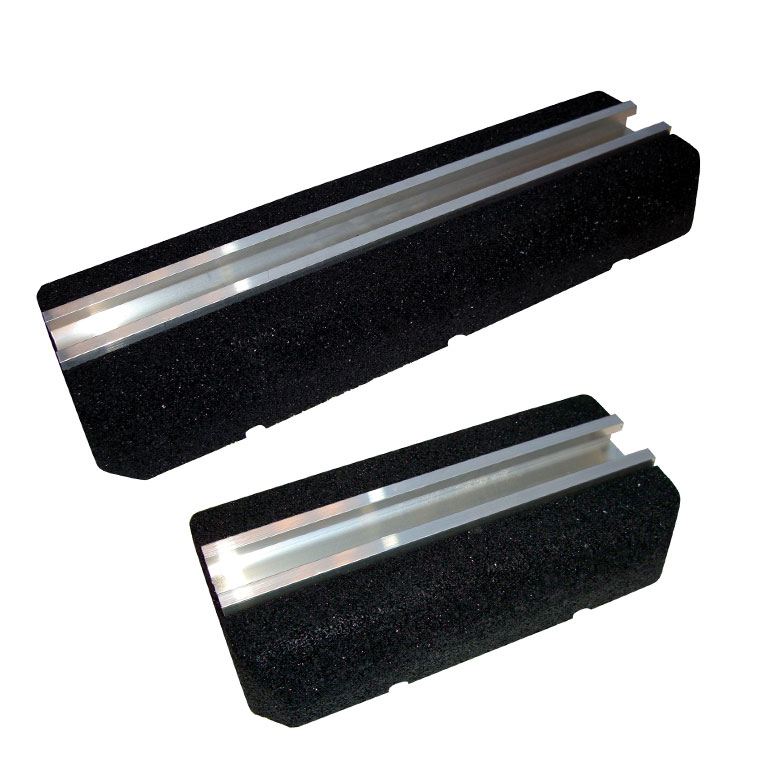

| B9043 | Fix-it Foot Low 250 | 50 | 250 | 82 | 1.3 | 130 |
| B9045 | Fix-it Foot Low 400 | 50 | 400 | 128 | 2.1 | 130 |
| B9368 | Fix-it Foot Low 500 | 50 | 500 | 134 | 2.5 | 130 |

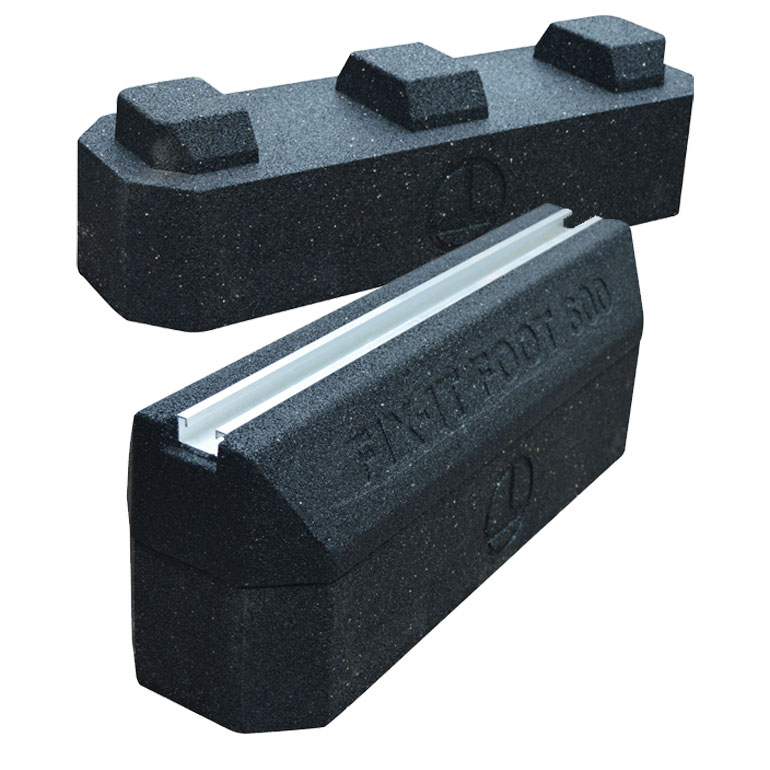

| B6974 | High Bloc 600 | 120 | 600 | 224 | 10.2 | 180 |
| B6973 | High Bloc 1000 | 120 | 1000 | 295 | 17.7 | 180 |
- Quick and simple install
- Aluminium channel securely anchored in top for easy fixing of services
- Wide range of height and length options available
- Durable recycled rubber reduces vibration and adds stability
