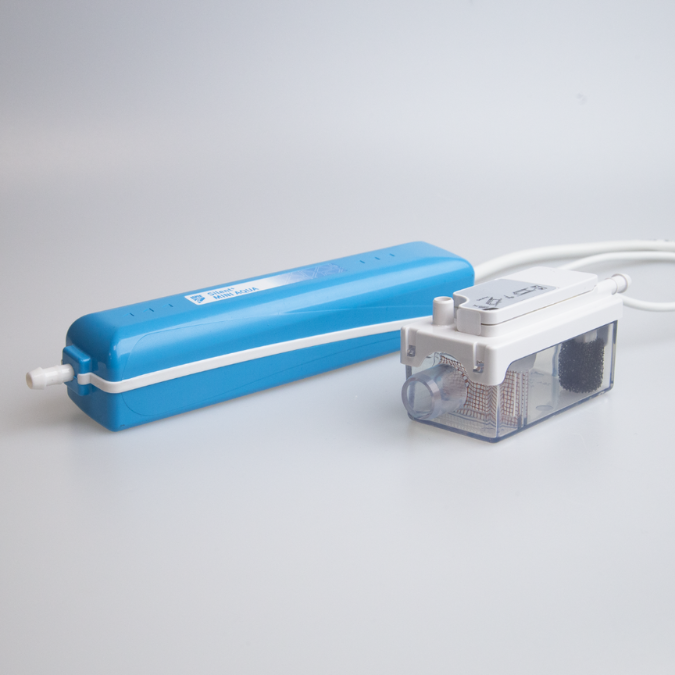

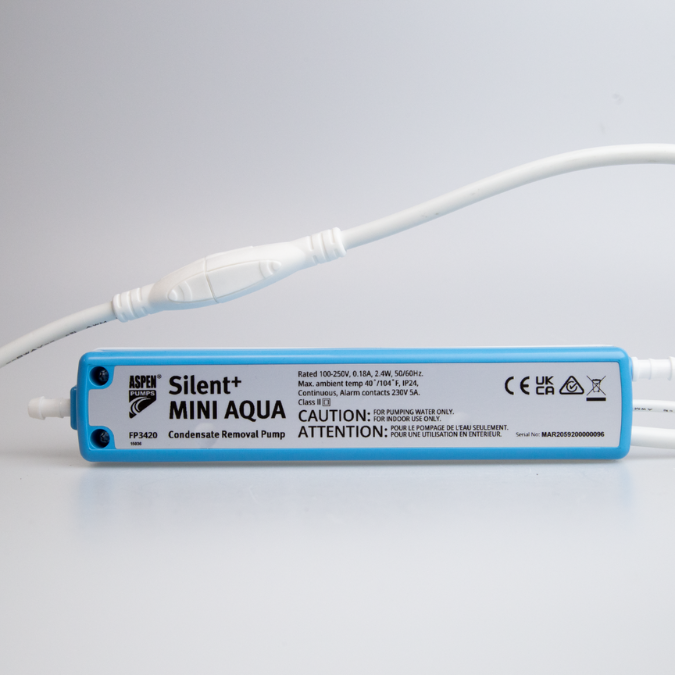

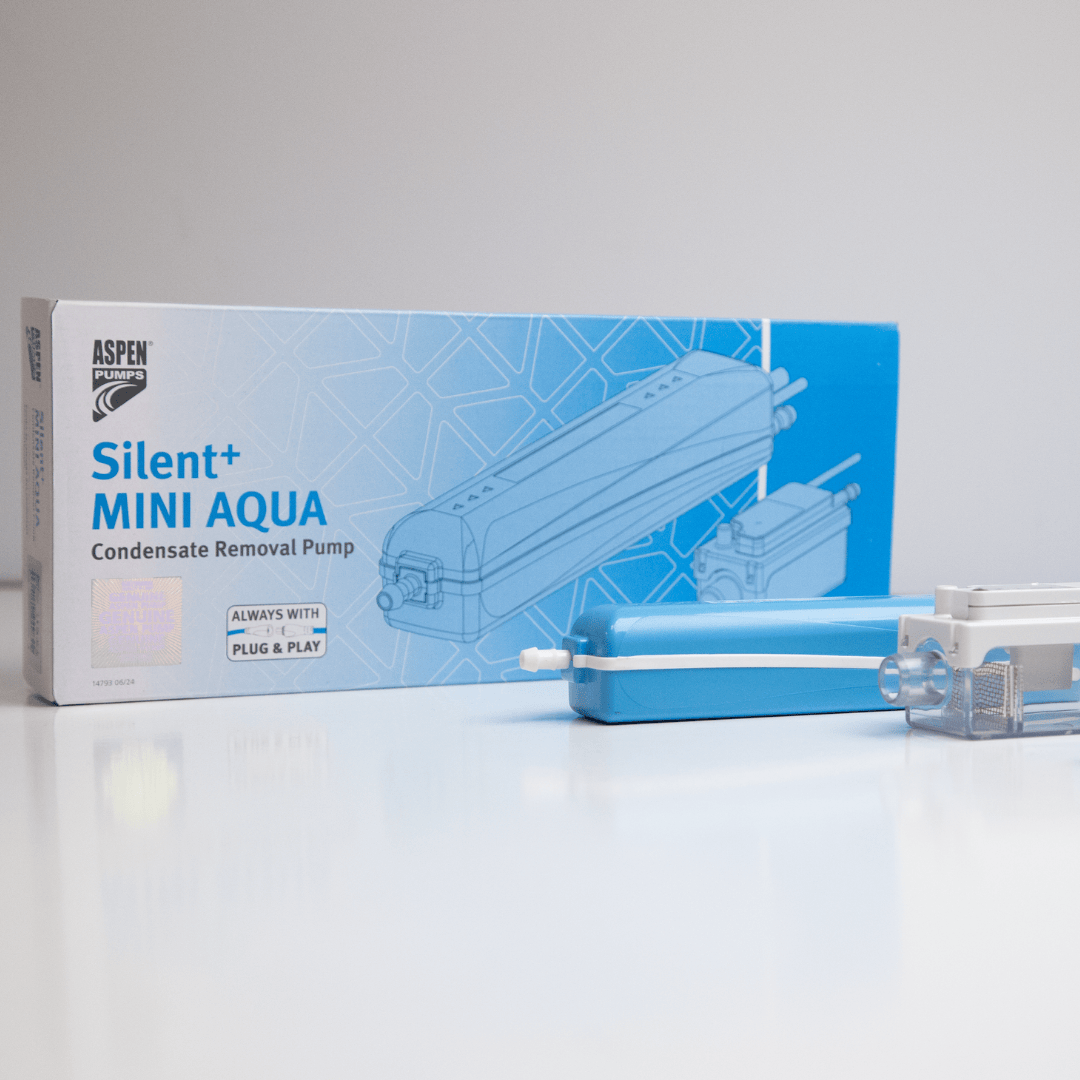

NEW Silent+ Mini Aqua®
The Silent+ Mini Aqua keeps its sleek and slender form offering unparalleled installation flexibility. It fits neatly into trunking and inside mini split units. Packed with our proven 5th Gen Technology, it’s unbeatable silence – a barely audible 16dB(A)*, combined with intelligent, adaptive flow rates – further extends pump life, maximises reliability and improves energy efficiency. Quietly brilliant.
Max. flow
35L/h max. flow
Max. rec. head
10m max. rec. head
Sound level
As low as 16dB(A)*
| Part number | Description |
|---|---|
| FP3420 | Silent+ Mini Aqua (5th Gen, Europe) |
- Slim profile
- Proven 5th Gen Technology: Capactance Sensing & Rotary Diaphragm = Silence & Power
- Low maintenance
- Plug and play**
- 3 year warranty
- Up to 40kW / 136,000Btu/h
- Ducted units; floor standing & chassis units; high wall mini split systems
Max. flow
35L/h @ 0m head
Max. rec. head
10m
Max. suction lift
1.5m
dB (a)
16dB(A)*
Power supply
100-250VAC, 0.18A, 2.4W, 50/60 Hz
Rated
Continuous
Class
II
Max. unit output
40kW (136,000Btu/h)
Max. water temp
40°C (104°F)
Inlets
Ø16mm (5/8”)
Outlets
Ø6mm (1/4”)
IP Protection
IP24
Safety switch
5.0 A Normally closed
Self priming
✓
- Silent+ Mini Aqua 5th Gen pump
- Reservoir (inc. filter and lid)
- 1.5m plug and play cable**
- 1.5m clear PVC tube
- 150mm clear vent hose
- 220mm blue inlet hose
- Drain connector kit: straight connector and rubber elbow
- Quick start guide
Need help finding the right pump for your unit?
The Aspen Pumps pump selector is a guide to help match your unit to the right pump.
Where to buy
Our products are sold nationwide by all major suppliers
