Silent+ Mini Lime
The next generation Silent+ Mini Lime has an anti-vibration damper and built-in sound absorbing materials. As well as a quick release reservoir, you can also commission the pump on site, and check operation via the LED system in the reservoir. Silence isn’t golden, it’s lime.

Max. flow
12L/h

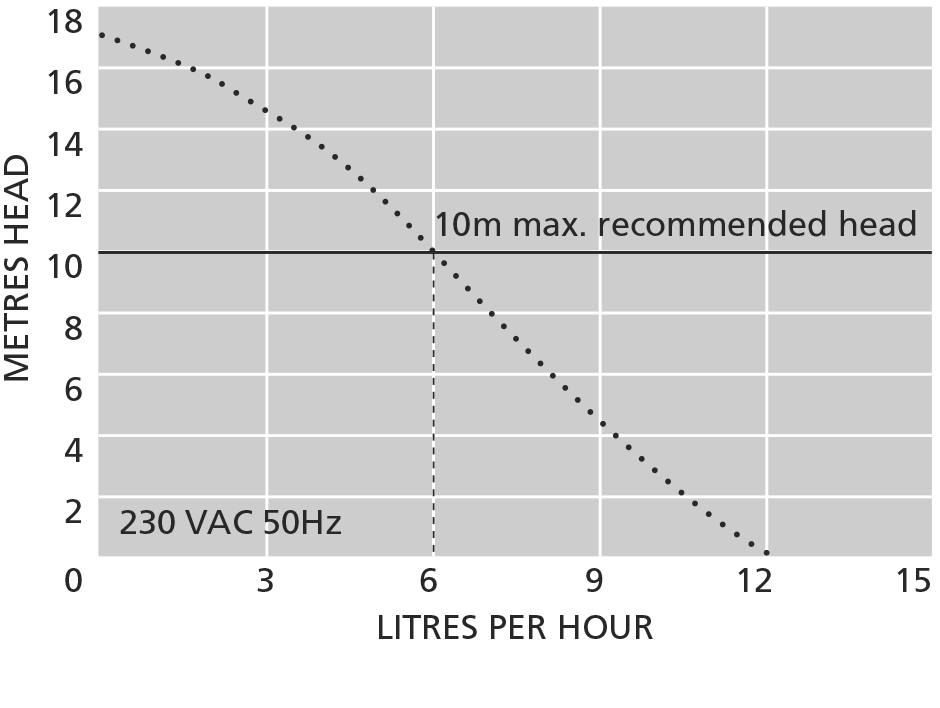

Max. rec. head
10m (flow rate 6L/h)

Sound level
20dB(A) @ 1m

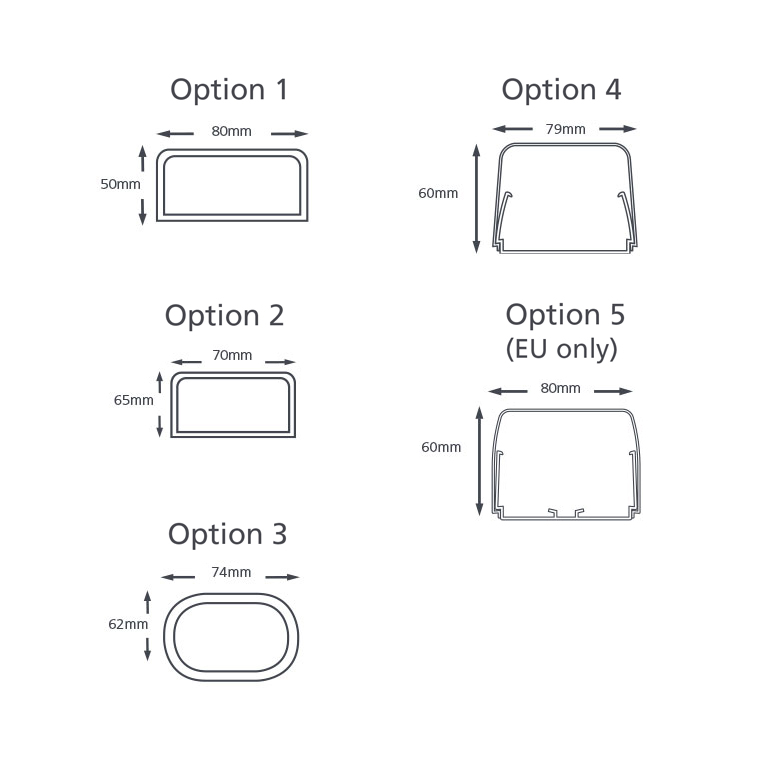

Part number | Colour | Description |
---|---|---|
FP3312/3 | Ivory | Option 1 |
FP3319/3 | White | Option 1 |
FP3316/3 | Ivory | Option 2 |
FP3320/3 | White | Option 2 |
FP3317/3 | Ivory | Option 3 |
FP3321/3 | White | Option 3 |
FP3315/3 | Ivory | Option 4 |
FP3314/3 | White | Option 4 |
FP3327/3 | White | Option 5 (EU ONLY) |
FP3322/3 | n/a | Silent+ Mini Lime Replacement |
- Anti-vibration damper
- Pump sits in trunking elbow
- LEDs provide visual operating feedback
- Up to 16kW / 54,000Btu/h
- High wall split systems
- Left or right install with range of trunking systems
- Perfect for... Commercial use where silence is important
Data Based
@ 230 VAC 50Hz
Max. flow
12L/h
Max. rec. head
10m
dB(A)
20 (Assuming solid wall construction with a 2kW unit)
Power supply
230 VAC, 0.1A, 16W, 50/60Hz
Rated
Non continuous
Class
II appliance
Max. unit output
16kW / 54,000Btu/h
Max. water temp
40°C / 104°F
Discharge tube
6mm ID
IP Protection
IP24
Safety switch
5.0A N.C. / N.O. (5.0A volt free with Normally Closed/Normally Open contacts. Default factory set to Normally Closed mode.)
Thermal protection
✓
Self priming
✓

- Silent+ Mini Lime pump (including 1.5m hard wired power cable)
- Anti-vibration pulse damper, anti-siphon device
- 500mm Lime green inlet hose 14mm ID
- 40mm Vinyl breather tube 6mm ID
- Elbow front and back
- 800mm Conduit front and back
- Internal conduit sleeve (Option 1 Slimline system only)
- Gasket (Option 1 Slimline, Option 2 and Option 3 Inoac systems only)
- Ceiling plate
- Drain connector kit
- Fixing kit
- Install manual
