Heavy Duty 6 & 10

With an impressive flow rate, these robust and reliable Heavy Duty pumps are perfect for the rapid removal of large quantities of condensate water.

Max. flow

HD6: 900L/h, HD10: 1070L/h


Max. rec. head

HD6: 6m (flow rate 180L/h, HD10: 9m (flow rate 100L/h)

Heavy Duty 10L, FP2066/2

Heavy Duty 10L, FP2066/2

Heavy Duty 6L & 10L dimensions

Heavy Duty installation

Heavy Duty tank pumps are ideal for temperature critical environments. Keeping equipment & data safe.

Heavy Duty 10L, FP2066/2

Heavy Duty 10L, FP2066/2

Heavy Duty 6L & 10L dimensions

Heavy Duty installation

Heavy Duty tank pumps are ideal for temperature critical environments. Keeping equipment & data safe.

    Part number Description
    FP2074/2 Heavy Duty 6
    FP2066/2 Heavy Duty 10
    • High flow rate
    • Non return valve
    • Easy installation
    • 4 litre tank capacity
    • HD6: Up to 1200kW / 4m Btu/h
    • HD10: Up to 1460kW / 4.9m Btu/h
    • Dehumidifiers; Air handling units (AHUs)
    • Perfect for... Large volumes of water
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    HD6: 900L/h, HD10: 1070L/h
    Max. rec. head
    HD6: 6m, HD10: 9m
    Tank Capacity
    4L
    dB(A)
    HD6: 60, HD10: 64
    Power supply
    HD6: 230 VAC, 1.5A, 50Hz, HD10: 230 VAC, 0.38A, 50Hz
    Rated
    HD6: Non continuous, HD10: Continuous
    Class
    I appliance
    Max. unit output
    HD6: 1200kW / 4m Btu/h, HD10: 1460kW / 4.9m Btu/h
    Max. water temp
    40°C / 104°F
    Inlets
    x2 40mm
    Outlets
    10mm
    IP Protection
    IP20
    Safety switch
    3.0A Normally closed
    Thermal protection
    Fully potted
    Self priming

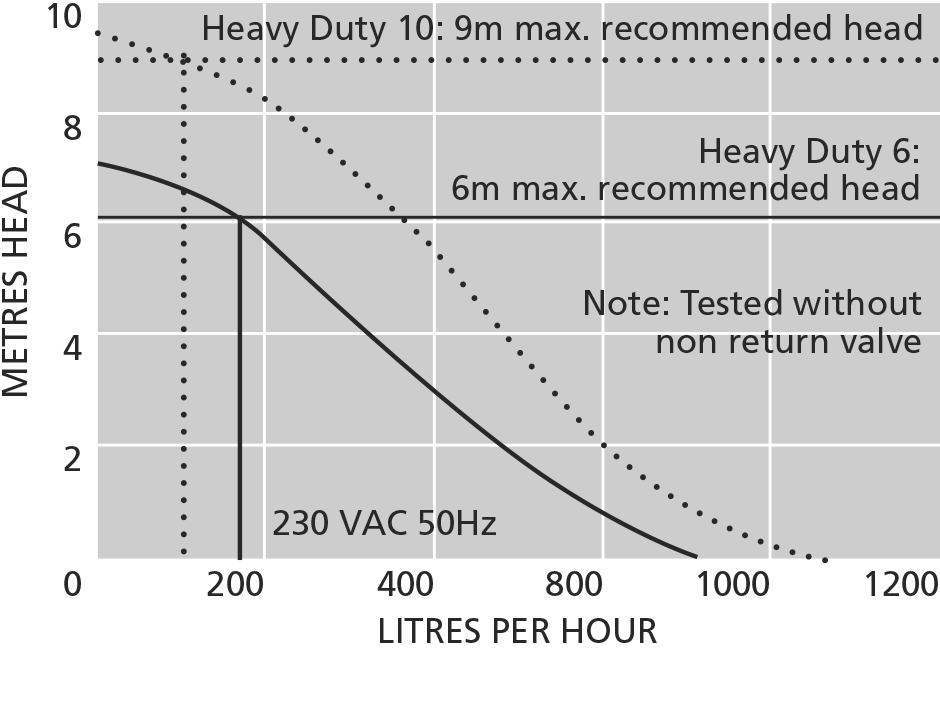

    Flow Chart
    • Heavy Duty 6 or 10 pump
    • 2m power cable
    • Install manual
