Hi-Lift 1 & 2L

The world’s only persitaltic tank pump offers unsurpassed high head and unmatched reliability.

Max. flow

11L/h


Max. rec. head

12m (flow rate 11L/h)

Hi-Lift 2L, FP2071/2

Hi-Lift 2L, FP2071/2

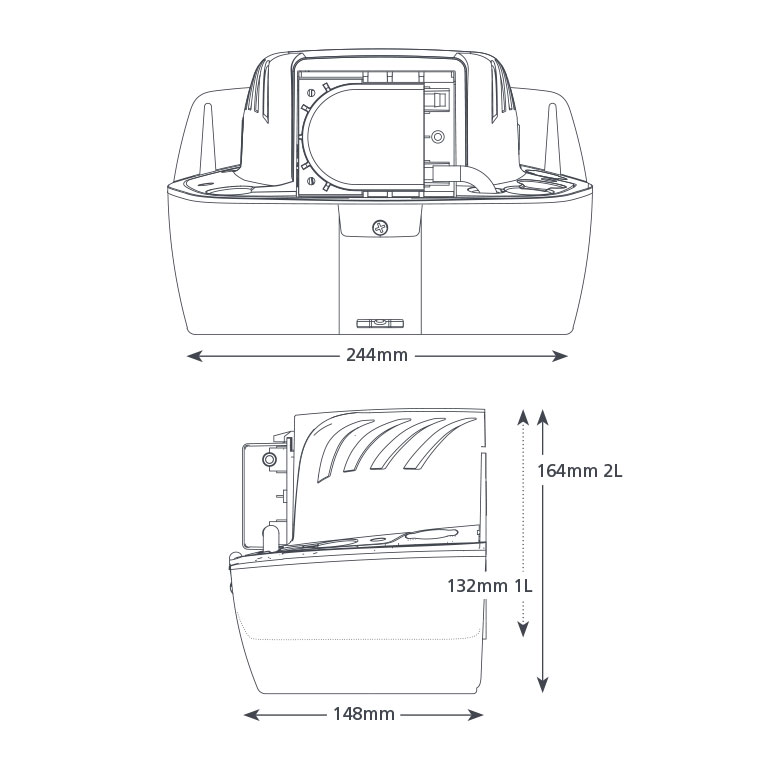

Hi-Lift 1 & 2L dimensions

Hi-Lift 2L, FP2071/2

Hi-Lift 2L, FP2071/2

Hi-Lift 1 & 2L dimensions

    Part number Description
    FP2099/2 Hi-Lift 1L
    FP2071/2 Hi-Lift 2L
    • High head
    • Easy fit & maintenance
    • Easy access clean tray
    • Built in spirit level
    • Up to 14kW / 47,000Btu/h
    • Ducted units; Floor standing & Chassis units; Cassette units; Refrigerated units / cold store
    • Perfect for... High head applications
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    11L/h
    Max. rec. head
    12m
    Tank Capacity
    1L & 2L
    dB(A)
    51
    Power supply
    230 VAC, 0.4A, 50/60Hz
    Rated
    Continuously
    Class
    I appliance
    Max. unit output
    14kW / 47,000Btu/h
    Max. water temp
    40°C / 104°F
    Inlets
    x3 25mm in, 6mm out
    IP Protection
    IP20
    Safety switch
    3.0A Normally closed
    Thermal protection
    1
    Fully potted
    0
    Self priming
    0
    Flow Chart
    • Hi-Lift 1L or 2L pump
    • 2m Plug & play power cable
    • Fixing kit
    • Install manual
    Pump selector

    Need help finding the right pump for your unit?

    The Aspen Pumps pump selector is a guide to help match your unit to the right pump.
