Mini Tank

The new and improved Mini Tank pump can be wall mounted, floor mounted, in-pan or suspended on M8 / M10 rod. Using piston technology this is a compact, powerful and multi functional tank pump.

Max. flow

35L/h


Max. rec. head

15m (flow rate 10L/h)

Mini Tank, FP1056/2

Mini Tank, FP1056/2

Mini Tank dimensions

Four ways to install

Mini Tank installation

The Mini Tank is the perfect fit when there is not enough room to fit a gravity water trap and drain.

Mini Tank, FP1056/2

Mini Tank, FP1056/2

Mini Tank dimensions

Four ways to install

Mini Tank installation

The Mini Tank is the perfect fit when there is not enough room to fit a gravity water trap and drain.

    Part number Description
    FP1056/2 Mini Tank
    • Four ways to install
    • Compact & discreet
    • Can be located in drain pan
    • Easy maintenance
    • Up to 46kW / 157,000Btu/h
    • Ducted units; Floor standing & chassis units; Cassette units
    • Perfect for... Installation versatility
    Data Based
    @ 230 VAC 50Hz
    Max. flow
    35L/h
    Max. rec. head
    15m
    Tank Capacity
    0.24L
    dB(A)
    35
    Power supply
    230 VAC, 0.11A, 16W, 50/60Hz
    Rated
    Non continuous
    Class
    II appliance
    Max. unit output
    46kW / 157,000Btu/h
    Max. water temp
    40°C / 104°F
    Inlets
    x2 22mm, 12mm & 27mm
    Outlets
    6mm & 10mm
    IP Protection
    IP65
    Safety switch
    3.0A Normally closed
    Thermal protection
    1
    Fully potted
    1
    Self priming
    0

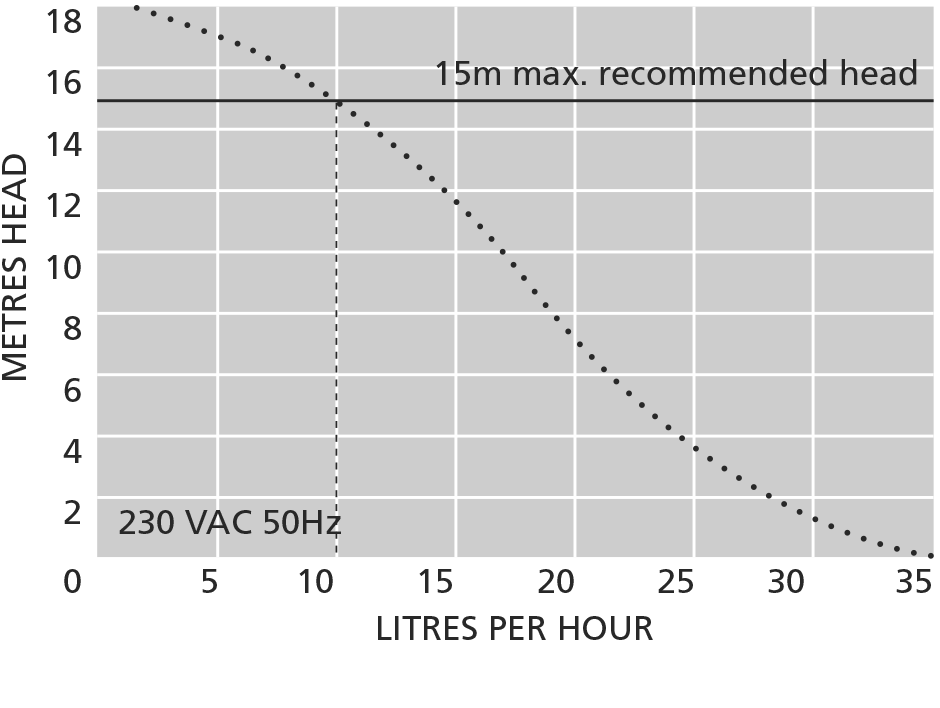

    Flow Chart
    • Mini Tank pump (including hard wired 1.5m power cable)
    • x2 Rubber adaptors (21.5mm& 31mm)
    • Anti siphon device
    • Fixing kit
    • Install manual
