Mini Orange
The world’s best selling mini pump offers unrivalled reliability and performance.

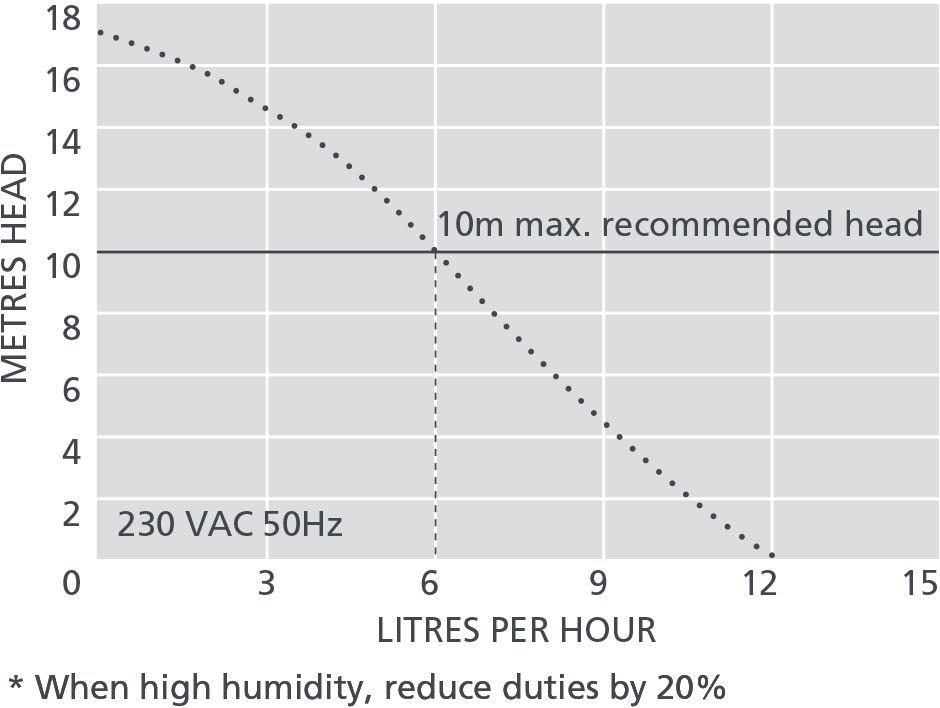

Max. flow
12L/h
Max. rec. head
10m (flow rate 6L/h)
Sound level
21dB(A) @ 1m
Mini Orange®, FP2212
In the box
Mini Orange®, FP2212
In the box
| Part number | Description |
|---|---|
| FP2212/FIL | Mini Orange |
- Submersible secondary reservoir included
- Plug & play
- Anti siphon device
- Up to 16kW / 54,000Btu/h
- High wall split systems; Ducted units; Floor standing & Chassis units
- Perfect for... Smaller commercial & domestic units
Data Based
@ 230 VAC 50Hz
Max. flow
12L/h
Max. rec. head
10m
Max. suction lift
2m
dB (a)
21
Power supply
230 VAC,0.11A, 16W, 50/60Hz
Rated
Non continuous
Class
II appliance
Max. unit output
16kW / 54,000Btu/h
Max. water temp
40°C / 104°F
Discharge tube
6mm ID
IP Protection
IP21
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✓
Self priming
✓
- Mini Orange pump
- 1.5m Plug & play power cable
- 16mm Inline Filter
- Reservoir
- Reservoir lid with 1.5m sensor cable
- Submersible reservoir
- Anti siphon device
- Float & filter
- 1.5m Suction tube 6mm ID
- 220mm Orange inlet hose 14mm ID
- 150mm Vinyl breather tube 6mm ID
- Drain connector kit
- Fixing kit
- Install manual
