Max Hi-Flow
The best in class Max Hi-Flow tank pump carries on the Aspen Pumps tradition of build quality & high performance. With the lowest dB(A) rating & best IP rating (IP24 splash proof) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.

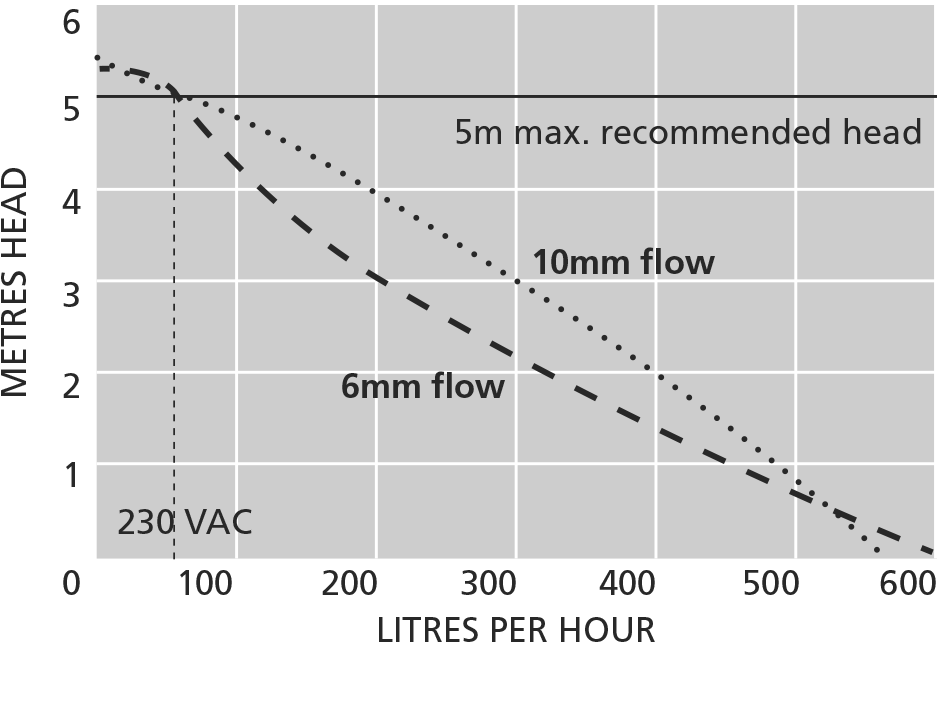

Max. flow
550L/h max. flow
Max. rec. head
5m max. rec. head
(flow rate 55L/h)
Max Hi-Flow, FP3349
In the box
The lowest dB(A) & best IP rating (IP24) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.
Max Hi-Flow, FP3349
In the box
The lowest dB(A) & best IP rating (IP24) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.
| Part number | Description |
|---|---|
| FP3349 | Max Hi-Flow |
- IP24 - Splash proof
- Easy access tank
- Built in spirit level
- Plug & play
- Up to 733kW / 2.5m Btu/h
- Ducted units; Floor standing & Chassis units; Cassette units
- Perfect for... Large commercial units
Data Based
10mm NRV @ 230 VAC 50Hz
Max. flow
550L/h
Max. rec. head
5m
Tank Capacity
1.7L
dB(A)
44
Power supply
230 VAC, 0.8A, 50Hz
Rated
Non Continuous
Class
I appliance
Max. unit output
733kW / 2.5m Btu/h
Max. water temp
40°C / 104°F
Inlets
x4 21-27mm
Outlets
6mm & 10mm
IP Protection
IP24
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✕
Self priming
✕
- Max Hi-Flow tank pump
- Plug & Play power cable
- Fixing kit incl. rod mount and wall mount clips
- Install manual
