NEW Silent + Mini Lime

The new and improved 5th gen Silent+ Mini Lime – just 16dB(A) this is the quietest and most versatile of elbow pumps. Simple and flexible to install. The proven technology delivers an impressive flow rate and lower power consumption. All round maximum performance, on-demand power, near-silent operation, optimum reliability and increased energy efficiency.

Max. flow

40L/h


Max. rec. head

15 m


Sound level

16dB(A) @ 1m

FP3322 HR

FP3322 A

FP3322 B

FP3322 HR

FP3322 A

FP3322 B

    Part number Colour Description
    FP3312/5 Ivory Slimline
    FP3319/5 White Slimline
    FP3323/5 Cream Kwik Fix
    FP3325/5 Black Kwik Fix
    FP3324/5 White Kwik Fix
    FP3327/5 White O-Ducting
    FP3320/5 White S-Ducting
    FP3321/5 White Inoac
    FP3322/5 Silent+ Mini Lime Replacement
    • Backwards compatible plug & play cable
    • Fits all popular trunking systems
    • Quick install – no longer need for a damper, anti-siphon
    • Up to 40L/h flow rate and up to 10 x lower power consumption
    • Up to 46kW / 157,000Btu/h
    • High wall split systems
    • Left or right install with range of trunking systems
    Data Based
    SILENT+ MINI LIME Univolt 100-250 VAC 50/60Hz

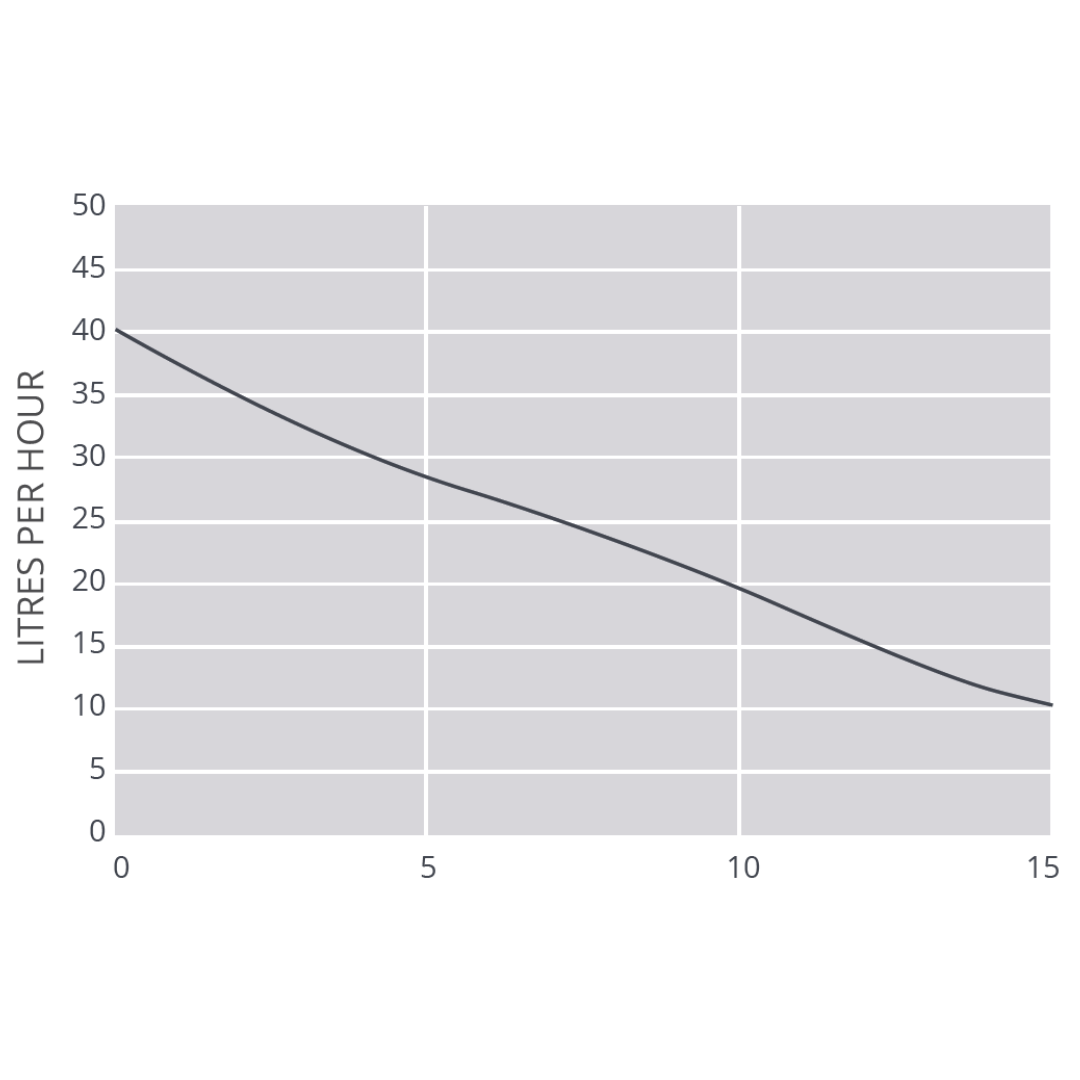

    Max. flow
    40L @ 0m head per hr
    Max. rec. head
    15 m
    dB(A)
    As low as 16*
    Power supply
    100-250 VAC, 0.18A, 2.1W, 50/60Hz
    Rated
    Continuous
    Class
    II appliance
    Max. unit output
    Up to 46kW / 157000Btu/h
    Max. water temp
    40oC
    Inlets
    Inlet o/d: Ø16mm
    Outlets
    Outlet o/d: Ø6mm
    IP Protection
    IP24
    Safety switch
    5.0A N.C. (Normally closed)
    Self priming
    FC UKIRE
    • Silent+ Mini Lime pump (including 1.5m Plug & Play cable)
    • 500mm Lime green inlet hose 14mm ID
    • 40mm Vinyl breather tube 6mm ID
    • Elbow front and back
    • 800mm trunking front and back
    • Interne Kanalmuffe (nur Slimline-System)
    • Internal trunking sleeve (Slimline system only)
    • Gasket (Slimline, S-Ducting and Inoac systems only)
    • Ceiling plate
    • Drain connector kit
    • Fixing kit
    • Quick Start Guide
