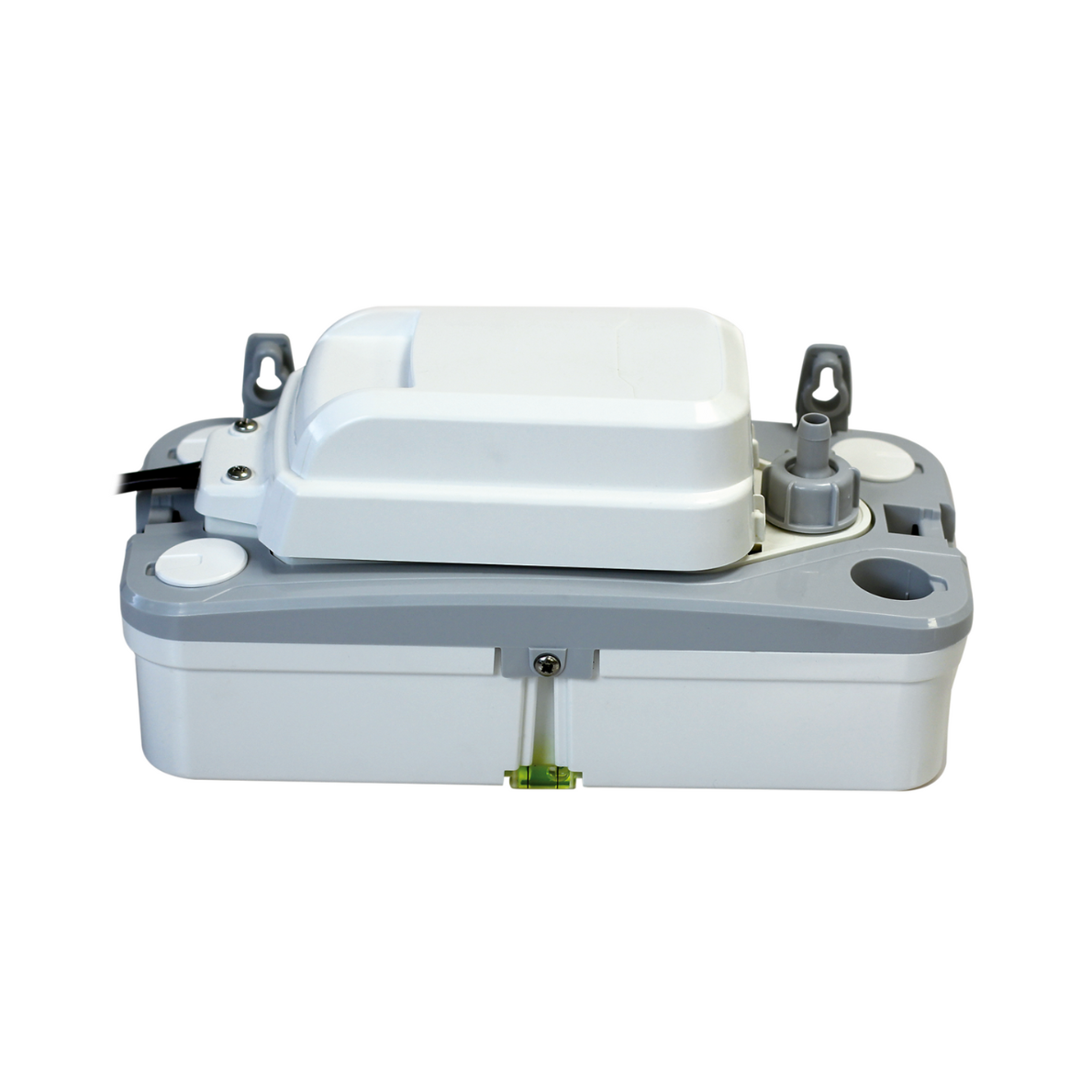

Endurance
The Aspen Endurance has been ruggedised to maximise reliability in boiler applications. Its construction allows short infrequent temperature excursions to 85°C. It can handle pH > 2.2 for applications where a neutraliser is not required. Max head is 5.5m and flow is 550L/h / 9L/m / 0.15L/s.
Max. flow
550L/h
Max. rec. head
5m (flow rate 55L/h)
| Part number |
|---|
| FP3501 |
- Stainless steel motor shaft
- Max working temperature 60°C with short infrequent excursions to 85°C (<5 min)
- Suitable for acidic condensate with pH >2.2 and <2.2 with neutraliser
- Thermally protected maintenance free motor
- IP24 protection against water splashes
- Spirit Level for ease of install
- Up to 200kW / 682,000 Btu/h
Data Based
ENDURANCE @ 230 VAC 50Hz
Max. flow
550L/h @ 0m head
Max. rec. head
5m
Tank Capacity
1.5L
dB (a)
44 dB(A) @ 1m
Power supply
230 VAC, 0.7A, 50/60Hz
Rated
Non continuous
Class
I appliance
Max. unit output
200kW / 682,000 Btu/h
Max. water temp
60°C / 140°F
Inlets
x4 21-27mm in, 6 & 10mm out
Outlets
x4 21-27mm in, 6 & 10mm out
IP Protection
IP24
Safety switch
3.0A Normally Closed
Thermal protection
✓
- Endurance pump
- Outlet adapter
- 2 x cable ties (200mm x 4.8mm)
- Clear PVC hose (6m of 10mm)
- Outlet pipe adaptor
