Hot Water Heavy Duty
The Hot Water Heavy Duty pump is designed to handle 80°C water and with an outstanding 1800L/h water flow rate. No job is too big!

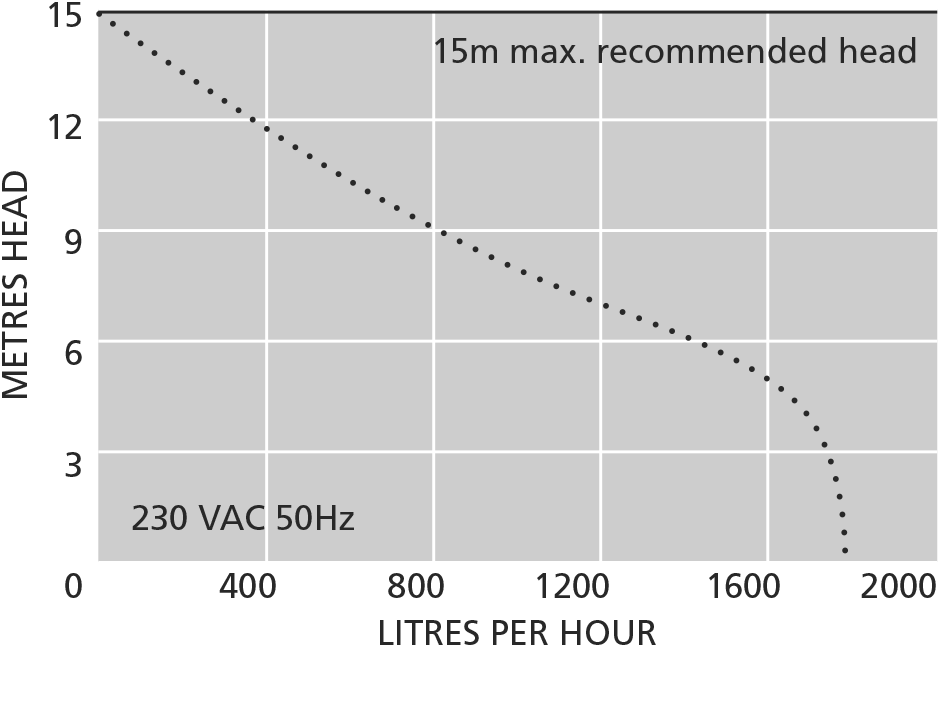

Max. flow
1800L/h
Max. rec. head
15m (flow rate 10L/h)
Hot Water Heavy Duty, FP2132
Hot Water Heavy Duty, FP2132
| Part number | Description |
|---|---|
| FP2132 | Hot Water Heavy Duty |
- High flow rate
- Handles 80°C water
- Non return valve
- Easy installation
- Up to 2400kW / 8m Btu/h
- Air handling units (AHUs); Humidifiers, Boilers; Refrigeration
- Perfect for... Large volumes of hot water
Data Based
@ 230 VAC 50Hz
Max. flow
1800L/h
Max. rec. head
15m
Tank Capacity
5L
dB (a)
63
Power supply
230 VAC, 1.5A, 50Hz
Rated
Continuously
Class
I appliance
Max. unit output
2400kW / 8m Btu/h
Max. water temp
80°C / 176°F
Inlets
x2 40mm
Outlets
15mm
IP Protection
IP21
Safety switch
3.0A Normally closed
Thermal protection
✓
Fully potted
✕
Self priming
✕
- Hot Water Heavy Duty pump (including non-return valve)
- 2m power cable
- Install manual
