Split Bracket
In three size options our Split Bracket supports even the heaviest of condenser units.
Split Bracket
Split Bracket

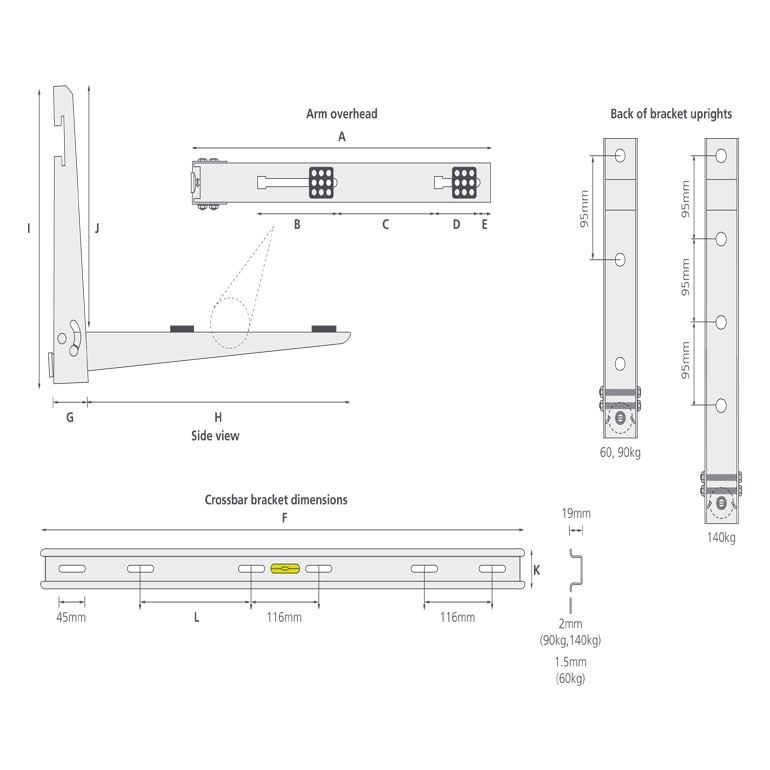

| Part no | Description | Size |
|---|---|---|
| B6383 | Split Bracket 60kg | 350 h x 800 w x 450 d mm |
| B6384 | Split Bracket 90kg | 350 h x 800 w x 550 d mm |
| B6385 | Split Bracket 140kg | 450 h x 850 w x 550 d mm |
- 3 sizes to cover all applications. 60kg, 90kg & 140kg
- Galvanised steel & powder coated conforms to ISO 09227 corrosion test
- Heavy gauge for added strength

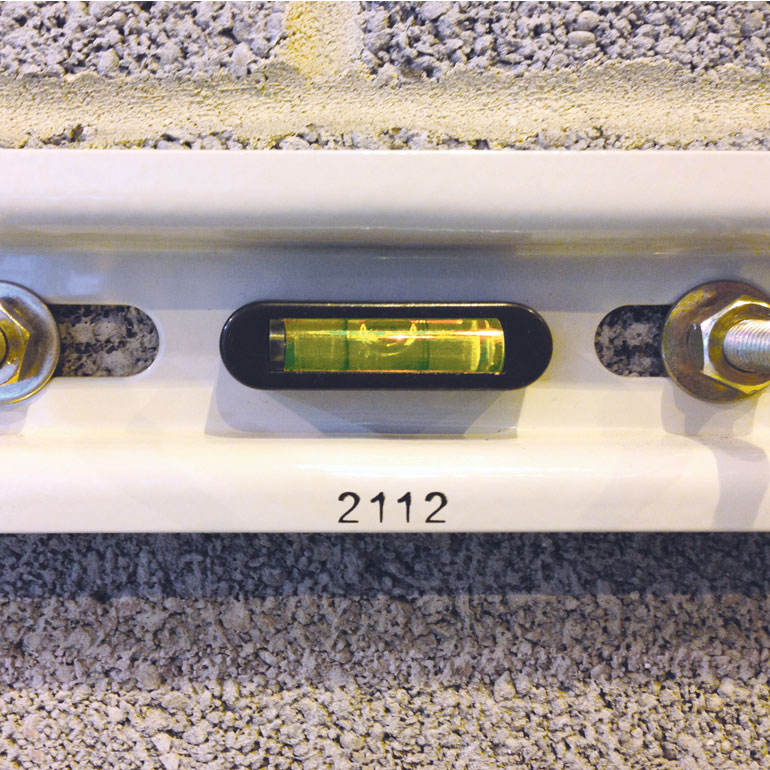

- Integrated spirit level for easy install
- High quality fixings supplied for secure installation
- Interlocking design part assembled for fast install
- Anti vibration pads as standard
- Bracket can be mounted using horizontal wall bar, or directly to the wall as bracket arm pairs
- Easy levelling on uneven walls, with adjustable bolt
- Suitable for use with all Aspen Xtra Drip Trays
Materials of construction
Galvanised steel (powder coated)
Conforms to ISO09227
Conforms to ISO09227
